1. Overview

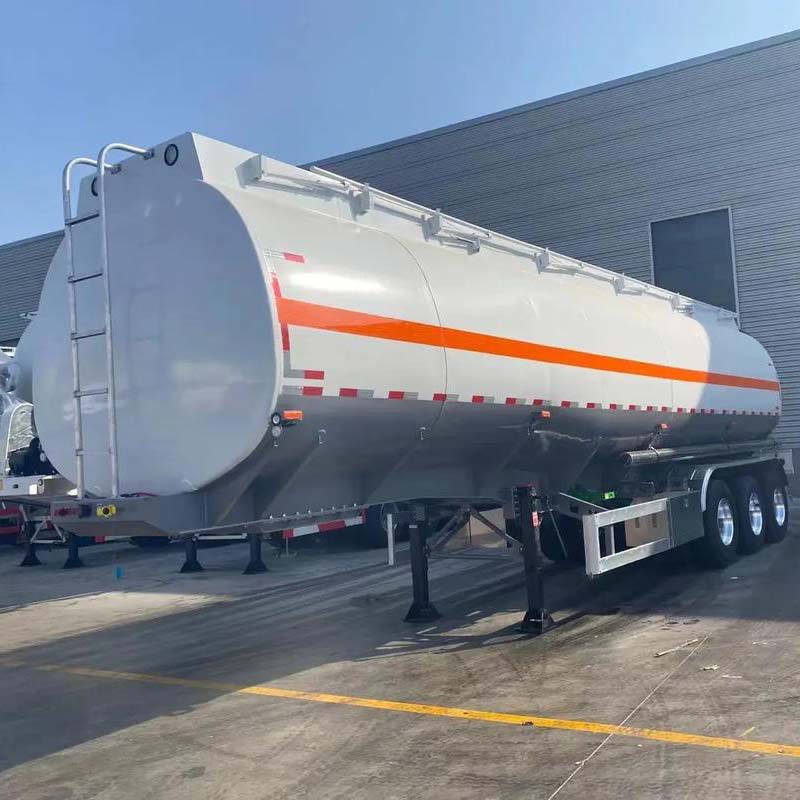

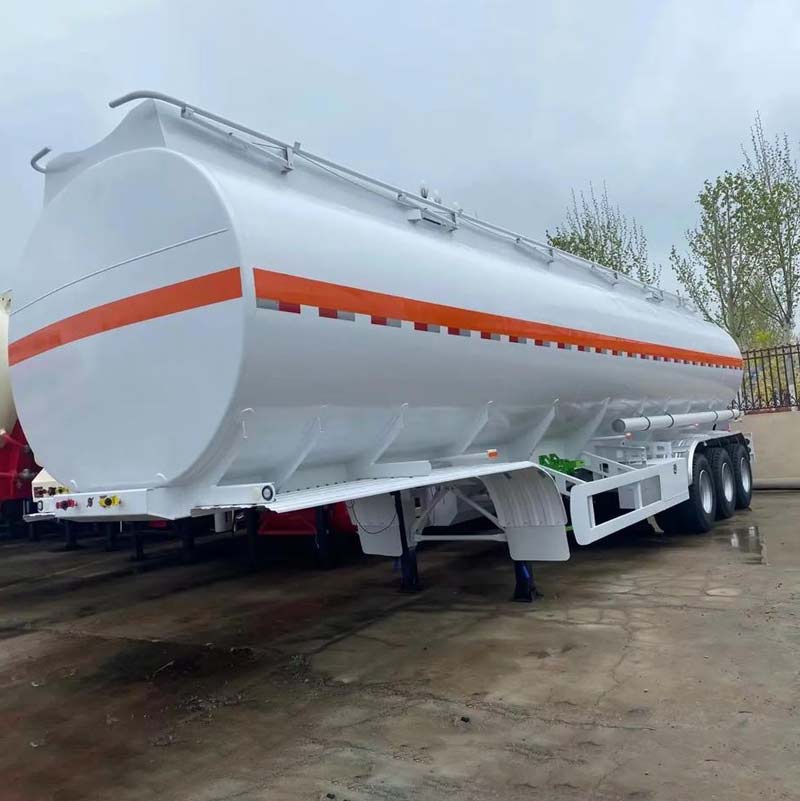

A fuel tank semi-trailer is a specialized tanker trailer designed for bulk transportation of petroleum products such as gasoline, diesel, jet fuel, crude oil, and other flammable liquids . These trailers are towed by a tractor unit and are widely used for long-distance fuel distribution from refineries and depots to gas stations, airports, and industrial facilities .
Fuel tank semi-trailers feature a cylindrical or elliptical tank mounted on a chassis with 2 or 3 axles, and are built to meet stringent safety regulations for hazardous materials transport . Modern units offer capacities ranging from 30,000 to 70,000 liters (8,000 to 18,500 gallons) with multi-compartment designs for transporting different fuel grades in a single trip .
2. Key Features
2.1 Tank Construction & Materials
| Feature | Description |
| Material Options | Carbon steel (standard for diesel/crude oil), aluminum alloy (lightweight for higher payload), stainless steel (for chemicals/food-grade) |
| Thickness | Tank shell 5mm, front and rear heads 6mm |
| Tank Shape | Elliptical or circular |
| Baffles | Multi-channel reinforced wave baffles (5mm thick) minimize liquid surge, improve driving stability |
| Compartmentalization | 1 to 7 independent compartments for multiple fuel grades in single trip |
| Manhole Covers | 500mm aluminum alloy manhole covers with breathing valve (2 sets typical) |
2.2 Safety Systems
| Safety Feature | Function |
| Electrostatic grounding wire | Prevents static spark ignition during loading/unloading |
| Bottom valve (emergency shut-off) | Automatically closes in case of rollover or accident |
| API discharge valve | 4" disc valve for safe, leak-proof fuel transfer |
| Breathing valve on manhole cover | Balances internal tank pressure; prevents collapse or rupture |
| Fire extinguishers | On-board for emergency response (2 units typical) |
| Oil/gas recovery system (optional) | Captures fuel vapors during loading; environmental compliance |
| Anti-overflow system (optional) | Prevents tank overfilling during loading |
| ABS (optional) | Anti-lock braking system for improved safety |
2.3 Loading/Unloading Systems
| System | Description |
| Top loading | Fuel loaded through manholes on top of tank |
| Bottom loading (optional) | Faster, safer loading via ground-level connections |
| Gravity discharge | Simple, reliable unloading via ball valves |
| Pump discharge | Gear oil pump for powered unloading (optional) |
| Discharge pipes | 4" seamless steel pipe or rubber hoses (2 units, 6m/each) |
2.4 Chassis & Running Gear
| Component | Typical Specification |
| Axles | 2 or 3 axles; FUWA 13T (BPW/SAF optional) |
| Suspension | America-type mechanical leaf spring (air suspension optional) |
| Leaf Springs | 90mm × 13mm × 10 layers |
| Tires | 12.00R20 or 12R22.5 (12+1 spare for 3-axle) |
| Rims | 9.00-22.5 steel (aluminum optional) |
| Kingpin | JOST 2" or 3.5" bolt-in |
| Landing Gear | JOST 28 Ton, 2-speed |
| Main Beam | Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm |
| Brake System | WABCO relay valve; T30/30 spring brake chamber; 45L air tanks |
| Electrical | 24V LED lighting (side markers, tail lights, width lamps) |
| Tool Box | Standard (1000 × 500 × 500 mm) |
3. Specifications (Representative Models)
3-Axle Fuel Tank Semi-Trailer – Standard Specifications
| Parameter | Value |
| Overall Dimensions (L×W×H) | 13,500 × 2,500 × 3,990 mm |
| Tank Capacity | 30,000 – 60,000 liters (33,000-60,000L typical) |
| Curb Weight | 9,500 – 11,500 kg |
| Payload (reference) | 39 – 41 tons |
| Axles | 3 × 13T (FUWA or BPW) |
| Suspension | Mechanical leaf spring (10 layers) |
| Tires | 12.00R20 or 12R22.5 (12 pieces + spare) |
| Kingpin | JOST 2" or 3.5" |
| Landing Gear | JOST 28 Ton 2-speed |
| Brake Valves | WABCO |
| Compartment | 1-7 compartments (customizable) |
| Discharge Valve | 4" API disc valve |
| Discharge Pipe | 4" seamless steel pipe or 4" rubber hose (2 units, 6m each) |
| Manhole Covers | 500mm with breathing valve (2 sets typical) |
| Tank Material | Carbon steel (5mm shell, 6mm heads) |
| Optional | Aluminum alloy tank, ABS, oil/gas recovery system, anti-overflow system |
2-Axle Fuel Tank Semi-Trailer
| Parameter | Value |
| Dimensions (L×W×H) | 10,080 × 2,500 × 3,600 mm |
| Capacity | 20,000 – 40,000 liters |
| Axles | 2 × 13T |
| Tires | 12R22.5 (8 pieces) |
4. Types of Tanker Trailers
| Type | Capacity Range | Common Loads | Special Features |
| Fuel Tanker | 5,000-11,600 gal | Gasoline, diesel, jet fuel | Compartmentalized (2-7 tanks) |
| Chemical Tanker | 6,000-9,000 gal | Acids, solvents, hazmat | Stainless steel, vapor recovery |
| Food Grade | 5,500-8,500 gal | Milk, oils, liquid chocolate | FDA-approved polished interior |
| Cryogenic | 4,000-6,500 gal | LNG, liquid nitrogen | Vacuum-insulated (-320°F cap.) |
| Dry Bulk | 1,500-3,000 cu.ft | Cement, flour, plastic pellets | Pneumatic unloading system |
Source:
5. Key Technologies & Safety Features
| Technology | Function |
| Multi-channel reinforced wave baffle | Minimizes liquid surge, improves driving stability |
| Electrostatic grounding wire | Prevents static ignition during fuel transfer |
| Breathing valve on manhole cover | Balances tank pressure; prevents collapse/rupture |
| Emergency bottom valve | Automatic shut-off during accidents |
| API disc valve + seamless steel pipe | Safe, leak-proof, durable fuel transfer |
| Oil/gas recovery system (optional) | Captures vapors; complies with emission regulations |
| Anti-overflow system (optional) | Prevents spillage during loading |
| ABS (optional) | Improves braking safety |
6. Applications
| Industry | Typical Use | Recommended Tanker |
| Fuel Distribution | Gasoline/diesel delivery to retail stations | 3-axle, 30,000-45,000L |
| Aviation | Jet fuel delivery to airport hydrant systems | 3-axle, 45,000-60,000L |
| Commercial/Industrial | Bulk fuel supply to factories, mines, farms | 2-axle or 3-axle based on volume |
| Oil & Gas Operations | Crude oil transport from wells to refineries | Multi-compartment semi-trailer |
| Wholesale Distribution | Bulk fuel transfer between depots | 3-axle, 50,000-70,000L |
7. Regulatory Compliance
| Standard | Region/Application |
| DOT 406 | US hazardous materials transport |
| GB standards | China |
| ADR (European Agreement) | Europe – hazardous goods transport |
| ISO 9001 | International quality management |
| CCC | China Compulsory Certification |
Source:
8. Buying Guide
8.1 Key Selection Factors
| Factor | Consideration |
| Required capacity | 30,000-70,000 liters based on delivery volume |
| Fuel types transported | Determines material (carbon steel vs. aluminum) and compartment needs |
| Number of compartments | Single for one fuel type; multiple for different grades |
| Operating environment | Highway vs. rough terrain affects suspension choice |
| Local regulations | Weight limits, ADR/DOT requirements |
| Axle configuration | 2-axle for lower weight; 3-axle for higher capacity |
| Compliance standards | ISO, DOT, ADR requirements for destination country |
8.2 Material Selection Guide
| Material | Best For | Advantages |
| Carbon Steel | Diesel, crude oil, non-corrosive products | Cost-effective, durable |
| Aluminum Alloy | Gasoline, jet fuel, refined products | Lightweight (higher payload), corrosion-resistant |
| Stainless Steel | Chemicals, food-grade, corrosive products | Corrosion-resistant, easy to clean |
8.3 Compartment Configuration
| Configuration | Best For |
| Single compartment | Transporting one fuel type per trip; maximum volume efficiency |
| 2-4 compartments | Carrying regular and premium grades; common for retail delivery |
| 5-7 compartments | Multiple product types; specialty distribution |
8.4 New vs. Used Considerations
| Aspect | New Tanker | Used Tanker |
| Price (3-axle) | $30,000-$55,000+ FOB (estimate) | Varies by condition and age |
| Warranty | Full manufacturer warranty | Limited or none |
| Compliance | Latest standards (DOT 406, ADR) | May not meet current regulations |
| Customization | Fully customizable | As-is |
| Condition | New, never used | Requires thorough inspection |
| Best for | Long-term ownership, critical operations | Budget-conscious buyers |
8.5 Used Tanker Inspection Checklist
Tank condition – Check for corrosion, leaks, damage, internal baffles
Hydraulic system – Inspect for leaks, hose condition, cylinder seals
Bottom valve – Test emergency shut-off function
Manhole covers – Verify breathing valve operation, seal condition
Discharge system – Test pump and valve operation
Chassis and suspension – Check for cracks, wear, corrosion
Axles and brakes – Inspect bearings, brake pads, air system
Tires – Assess wear and remaining life
Electrical system – Verify all lights function
Service records – Request complete maintenance history
9. Delivery & Service
| Item | Details |
| Lead time (new) | 4-12 weeks (depending on configuration and order quantity) |
| Lead time (used) | As available |
| Shipping | RORO / Flat rack / Container (disassembled) |
| Warranty | Typically 12 months (chassis + tank body) |
| Certification | ISO 9001, CCC, DOT/ADR (varies by market) |
| After-sales support | 24/7 online video technical support; genuine parts supply |
| Documentation | Commercial invoice, packing list, bill of lading, certificate of origin, owner's manual |
