1. Key Dimensions & Cargo Box

• Overall Dimensions (L×W×H mm): Approximately 5450-5995 × 1850-2150 × 2420-2650 (varies by cab and body).

• Wheelbase (mm): Common options are 2850 and 3200.

• Cargo Bed Dimensions (Flatbed, approx.):

• Single Cab: Length up to ~3700-4060 mm, Width ~1750-1850 mm.

• Double Cab: Length ~2700-3050 mm.

Van Body: Cargo volume up to approximately 11-13 cubic meters.

2. Powertrain

• Engine (Primary):

• Max Power: Approx. 90 kW (122 HP)

• Max Torque: Approx. 158 N·m

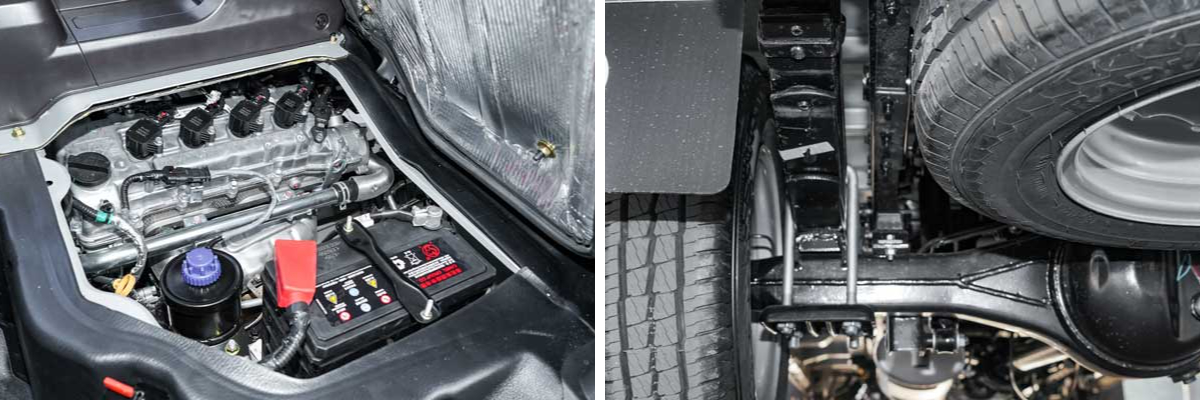

• Gasoline: Powered by the Dong'an DAM16KL 1.6L gasoline engine.

• Transmission: 5-speed manual transmission (standard).

• Fuel Type: Gasoline (standard). Diesel engines (e.g., ~2.0L Quanchai) may be available in some markets.

• Emission Standard: Complies with China VI (GB6-b) emission standards.

3. Chassis & Payload

• Frame: High-strength steel, reinforced ladder frame for durability.

• Rear Axle: Integral stamped/welded axle. Common Final Drive Ratios are 4.875 or 5.375 for balanced load capacity and gradeability.

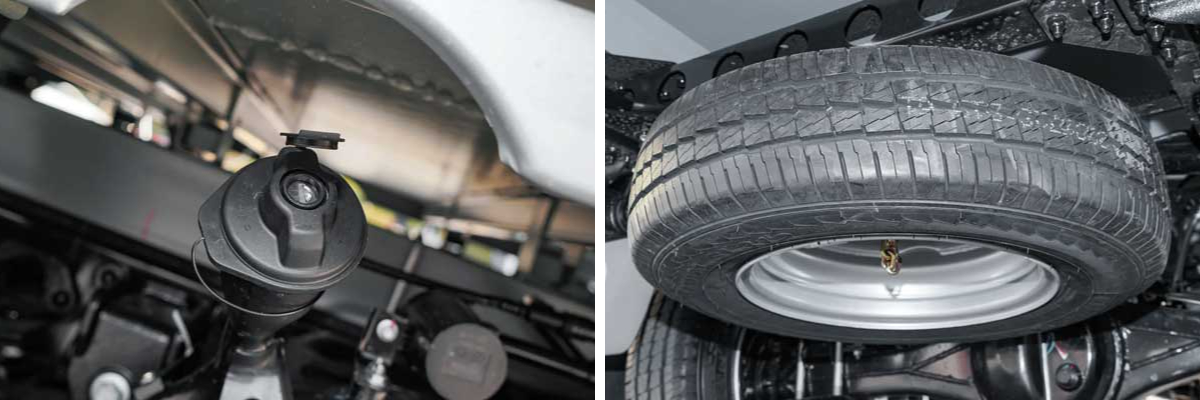

• Tires: Common sizes: 185R14LT or 195/70R15 radial truck tires.

• Payload Capacity: Typically between 1.0 - 1.5 metric tons (subject to specific model certification).

• Gross Vehicle Weight (GVW): Around 3.5 tons (e.g., 3495kg).

4. Cab & Interior Features (Utilitarian Focus)

• Interior: Car-like design, fabric seats, manual air conditioning.

• Instrumentation: Standard analog/digital combination cluster.

• Infotainment: AM/FM radio with USB port. Color touchscreen may be optional on higher trims.

• Safety Features: Standard ABS + EBD, front disc/rear drum brakes, seatbelt reminder, speed limiter (as per regulations). Cab meets safety strength standards.

5. Key Selling Points & Target Market

• Advantages:

1. Strong Payload: Robust chassis and frame for stable heavy-load transport.

2. Cost-Effective: Low purchase price, fuel consumption, and maintenance costs.

3. Maneuverable: Compact size for easy navigation in narrow city streets and rural roads.

4. Adequate Power: 1.6L engine is sufficient for daily logistics tasks.

• Primary Use Cases: Urban/rural distribution, supermarket deliveries, small business transport, building materials, and courier logistics.
