1. Powertrain

• Engine:

• Common Models: Primarily equipped with the DongAn DAM16KR or Wuling Liuji LJ4A16Q gasoline engine.

• Displacement: 1.6L naturally aspirated.

• Max Power: Approx. 90 kW (122 HP).

• Max Torque: Approx. 158 N·m.

• Technology: Features DVVT (Dual Variable Valve Timing) for balance of power and fuel economy.

• Transmission: 5-speed manual transmission.

• Rear Axle Ratio: Typically 5.375, optimized for load-bearing and hill-climbing.

2. Chassis & Load-bearing

• Frame: High-strength steel ladder frame.

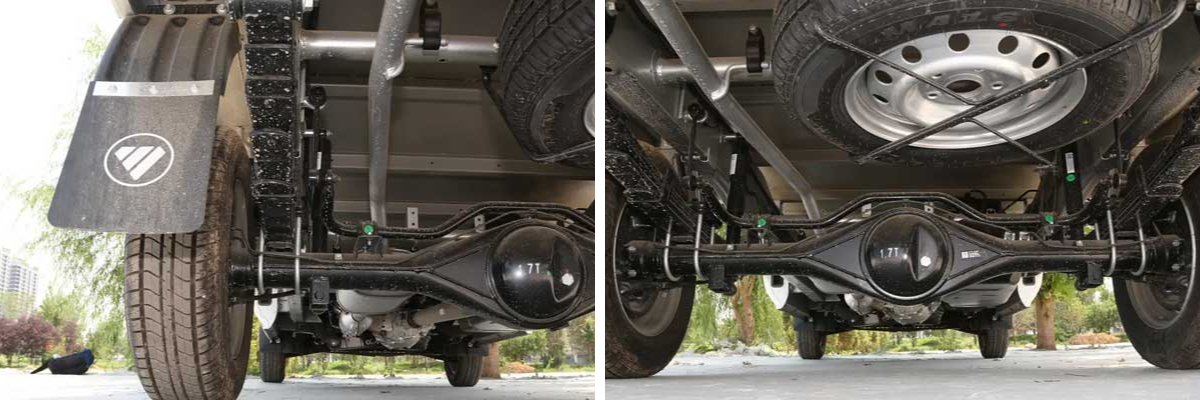

• Suspension: Independent MacPherson strut front suspension. Rear suspension uses 6/6+7-leaf parabolic spring for heavy loads.

• Tires: Common sizes are 185R14LT or 195/70R15 load-rated tires (rear dual wheels).

• Frame Section: Height ~140mm, Width ~50mm (varies by version).

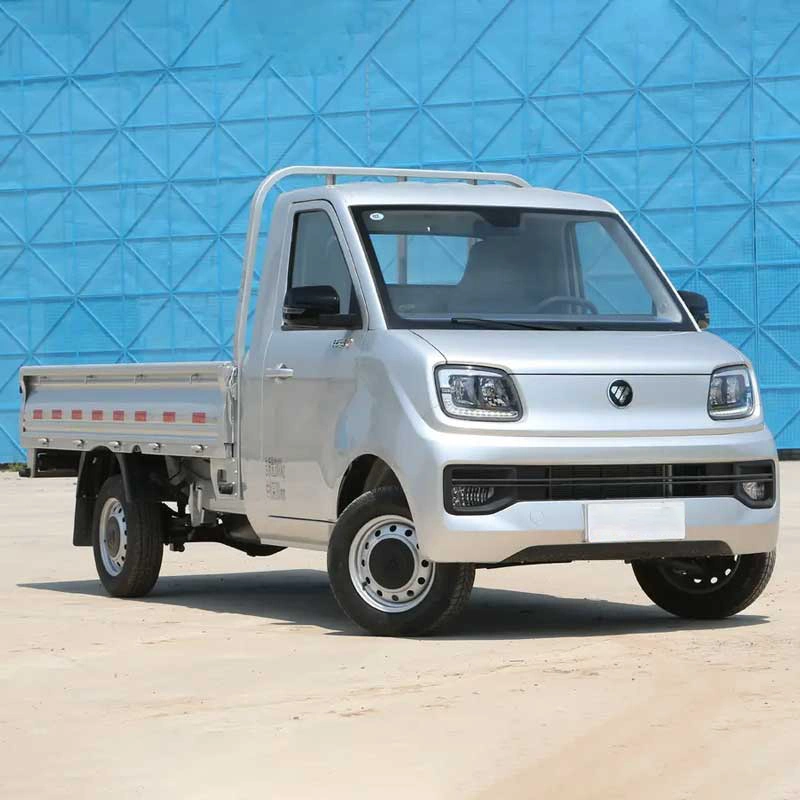

3. Dimensions & Cargo Box (Common variants available)

• Cab: Single Cab (2 seats) or Double Cab (5 seats, with shorter cargo box).

• Cargo Body Types: Flatbed (most common), Drop-side, Enclosed van.

• Example Dimensions (Flatbed):

• Single Cab: Cargo bed length ~ 3.1m - 3.7m, width ~ 1.6m - 1.8m, side height ~ 0.36m.

• Double Cab: Cargo bed length ~ 2.5m - 3.1m, width ~ 1.6m - 1.8m.

• Overall Vehicle Size: Length ~5.1m-5.8m, Width ~1.8m-1.9m, Height ~2.0m-2.1m.

• Rated Payload: Typically between 0.8 to 1.5 metric tons, depending on the specific model.

4. Interior & Features (Utility-focused, higher trims offer more)

• Instrument Cluster: Analog gauges with a monochrome multi-info display.

• Infotainment: Base models have a radio. Higher trims may include a color touchscreen with MP5, rearview camera, Bluetooth, USB.

• Climate Control: Manual air conditioning (may be optional on base models).

• Seats: Fabric upholstery, manual adjustment.

• Other: Power windows (mid/high trim), manual door locks, front/rear fog lights, ABS.

5. Key Selling Points Summary

• Strong Load Capacity: Robust chassis and rear axle design.

• High Cost-Effectiveness: Competitive purchase price and low operating costs (fuel, maintenance).

• Practical & Maneuverable: Compact size suitable for narrow streets. Multiple cab and body styles.

• Proven Reliability: Uses mature, widely-available engines (DongAn/Liuji), ensuring easy service.
