Foton Xiangling M2 2.0L 3.3-meter box-type mini truck

Foton Xiangling M2 2.0L 3.3-meter box-type mini truck
Core advantages:
Economical and practical: The gasoline engine has low maintenance costs and excellent fuel consumption performance (approximately 10.5L/100km in total)
Good maneuverability: The compact body can fit through narrow alleys and garages, with a turning radius of only 5.2 meters
High value for money: Among the same category, it offers rich configurations and is affordable, with a short payback period

What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.

What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.

How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us
Consult Now
产品描述

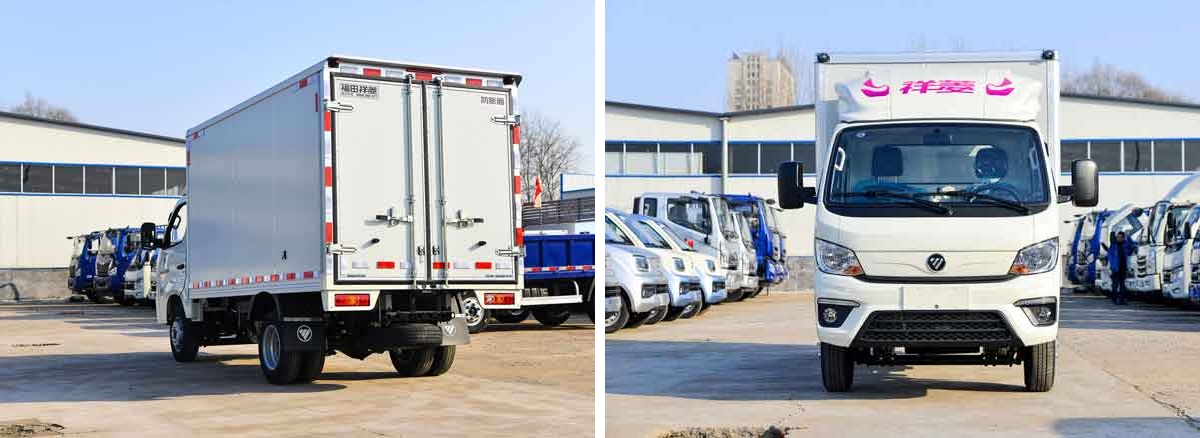

The Foton Xiangling M2 Striver Edition is a 3.3-meter single-row box-type mini truck specifically designed for urban logistics and individual transportation. It is equipped with a high-efficiency 2.0L gasoline engine, featuring 144 horsepower of powerful performance, and offers a balance between cargo capacity and fuel economy. This model adopts a classic micro-truck design, with a cargo compartment volume of 12 cubic meters. It is suitable for various urban distribution scenarios such as daily necessities, express delivery, and fresh food transportation, and is a reliable partner for entrepreneurs and small and medium-sized enterprises.


1765164565849557




Basic Information
Announcement Model:BJ5032XXY3JV6-15
Type:Box-type cargo truck
Drive Type:4X2
Wheelbase:2850mm
Box Length Class:3.3m
Engine:Dong'an DAN20L
Transmission:Dong'an DAT25R
Rear Axle Ratio:5.111
Vehicle Length:5.23m
Vehicle Width:1.9m
Vehicle Height:2.62m
Front Wheelbase:1410mm
Rear Wheelbase:1320mm
Vehicle Weight:1,755 tons
Rated Load Capacity:0.749 tons
Total Mass:2.634 tons
Maximum Speed:100km/h
Origin:Zicheng, Shandong
Tonnage Class:Mini camera
Approach Angle:24 degrees (°)
Departure Angle:19 degrees (°)
Front Suspension/Rear Suspension:0.075m/1.305m
Energy Type:Gasoline


1765165980463607

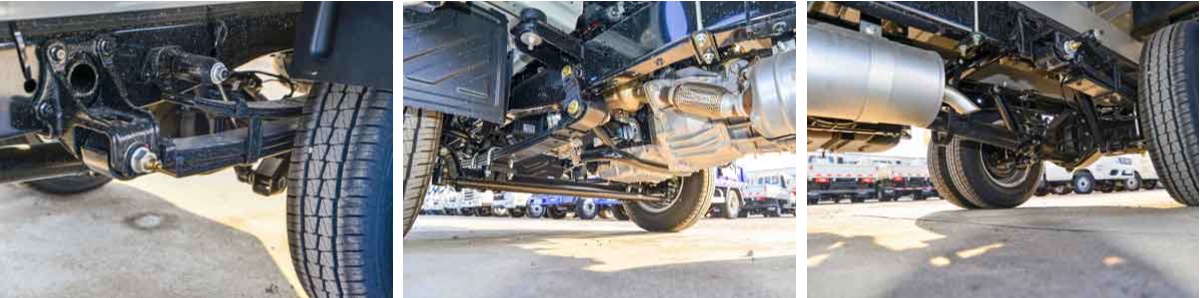

Production materials and techniques

Cab

  • High-strength steel frame, formed by overall stamping

  • Double-layer sealing strips, with excellent sound insulation and dust-proof performance


Truck body

  • Outer panel: High-quality cold-rolled steel plate, surface phosphating treatment

  • Inner lining: Anti-scuffing and wear-resistant corrugated board

  • Frame: Rectangular steel pipes welded, each meter can bear ≥ 500kg

  • Sealing: Overall foam rubber strips, waterproof and dustproof


Chassis

  • The main beam is made of 510L high-strength steel and is joined by riveting. The entire vehicle is coated with electrostatic paint, providing a corrosion protection period of up to 10 years.


Engine parameters
Engine brand:Dong'an
Engine model:DAN20L
Engine Information:Dong'an Gasoline 2.0L
Number of cylinders:4 cylinders
Fuel type:Gasoline
Cylinder arrangement:Straight-line
Displacement:1.998L
Emission standard:National VI
Maximum output power:106kW
Maximum horsepower:144 horsepower
Transmission parameters
Transmission model:Dong'an DAT18R
Transmission brand:Dong'an
Shifting method:Manual
Forward gears:5th gear
Reverse gears:1
Container parameters
Container type:Box-type
Container length:3.3m
Container width:1.76m
Container height:1.7m
Container interior width:1.76m
Chassis parameters
Front axle allowable load:1155kg
Description of rear axle:BJ121
Rear axle allowable load:1479kg
Ratio:5.111
Number of spring plates:3/3+2


Application scope


  • Express logistics: Suitable for last-mile delivery, with an average daily mileage of 100-200 kilometers.

  • Supermarket delivery: Transportation of grains and oils, beverages, and daily necessities.

  • Fresh food cold chain: Can be equipped with refrigeration units, used for transporting fruits, vegetables and frozen foods.

  • Tool services: Water and electricity maintenance, decoration materials, equipment parts transportation

  • Mobile retail: Converted into mobile sales vans or promotional vehicles

  • Factory turnover: Internal material transfer within the park
