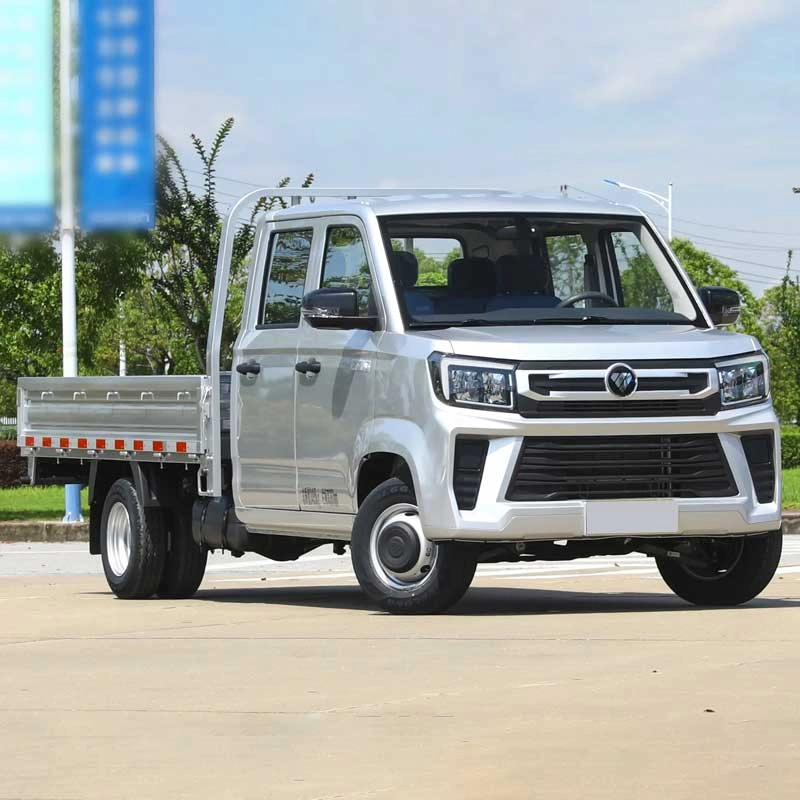

Futian Xiangling V5 1.6L Gasoline Micro Truck - Single Row/Double Row Options Available

Vehicle Type: Micro-truck / Pickup Truck
Cab Type: Primarily available in Single Row (2-seat) and Double Row (5-seat) cabins.
Cargo Box Type: Two main types: Flatbed and Enclosed Van.



What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.



What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.



How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us

Consult Now

1. Powertrain

Engine:

Displacement: 1.6L
Max Power: ~ 90 kW (122 HP)
Max Torque: ~ 158 N·m
Primary Option: Equipped with the proven Dong'an DAM16KL 1.6L naturally aspirated gasoline engine.
Other Options: Some models may offer 1.5L/1.6L gasoline engines from Wuling Liuji or Foton.

Transmission: 5-speed manual transmission.
Rear Axle Ratio: Commonly 4.875 or 5.125, optimized for load-carrying starts and hill climbing.
Emission Standard: Complies with China National VI (国六) standards.

2. Dimensions & Chassis

The Xiangling V5 offers stronger dimensions and load capacity than the base models.

Item	Single Row Flatbed (Approx.)	Double Row Enclosed Van (Approx.)
Overall Dim. (L×W×H mm)	5450~5800 × 1780~1900 × 2060~2150	5450~5900 × 1780~1900 × 2600~2800
Wheelbase (mm)	3200~3600 (Longer wheelbase improves stability)	3200~3600
Cargo Box Dim. (L×W×H mm)	3300~3700 × 1680~1750 × 360	2500~3200 × 1680~1750 × 1700~1800
Rated Payload (kg)	~1.5 - 1.8 Tons	~1.2 - 1.5 Tons (Double cab reduces payload capacity)

3. Chassis & Load-Bearing Structure

Frame: Straight-through ladder frame made of high-strength steel for strong load-bearing.
Front Suspension: MacPherson Strut independent suspension (provides some comfort).
Rear Suspension: 6/6+5 thick leaf springs, the core guarantee of its load capacity.
Braking System: Front disc / Rear drum brakes. Some models are equipped with ABS+EBD.

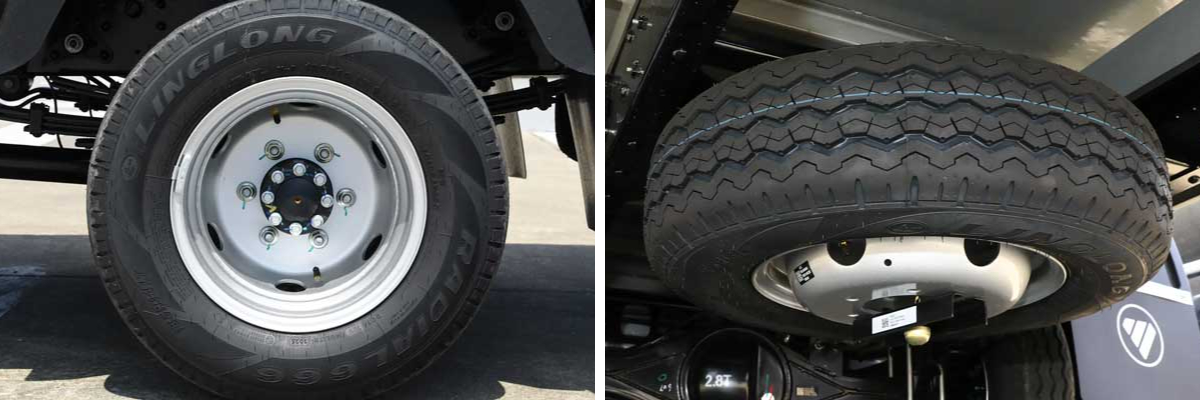

Tire Size: 185 R14LT or 195/70 R15C commercial-grade tires, with single rear tires.

4. Cab & Interior Features

The Xiangling V5's car-like interior is a key selling point.

Interior Design: Passenger-car style with a more modern dashboard layout.
Key Features:

Standard/Common: Power windows, central locking, remote key, hydraulic power steering, fabric seats.
Mid/High-trim may include: Air conditioning, multi-function steering wheel, MP5 touchscreen (with rearview camera, Bluetooth), leatherette seats, EPS electric power steering.

5. Key Characteristics & Competitors
Core Strengths:

Robust Load Capacity: Reliable frame and leaf spring setup for confident cargo hauling.
Adequate Power: The 1.6L engine is above average in the micro-truck segment.
Improved Comfort: Car-like interior and better sealing surpass traditional basic micro-trucks.
Modern Exterior: Front-end design is more contemporary, approaching a light-truck style.
