Foton Auman Water Tank Truck

Foton Auman Water Tank Truck
Type: Water Tank Truck
Tank Volume(m): 4/5/6
Volume:15001 – 30000L
Anticorrosion:EpoxyResin Paint

What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.

What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.

How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us
Consult Now
产品描述

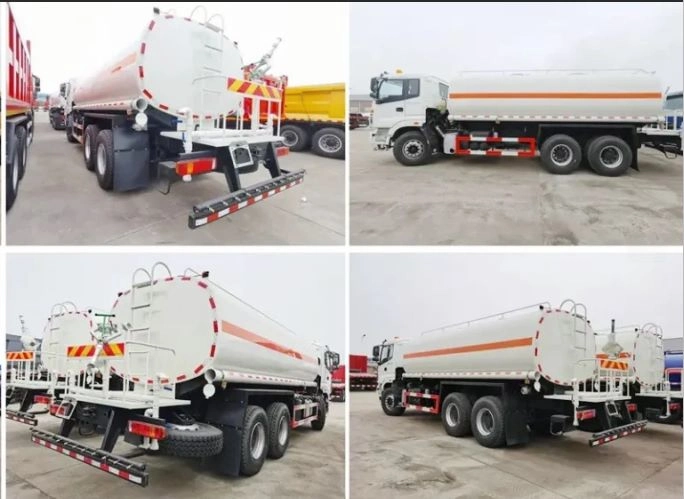

FOTON AUMAN Water Tank Truck 375HP With Front Spray Nozzles, Rear Water Sprinkler Cannon Two Sides Bowser for Dust Suppression 25Ton.

FOTON AUMAN Water Tank Truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.


1760321515499194


tem No.

Parameters

Chassis Brand

FOTON

Overall Dimension

9900×2500×3400mm

Gross Vehicle Weight

25000kg

Curb Weight

10605 kg

Wheel Base

4600+1350 mm

Cabin

Row and half, Left Hand Driving

Engine

Weichai, 270HP,310HP,340HP,380HP,430HP,460HP EURO 3 -6

Overhang( Front/Rear)

1525/2460(mm)

Fuel type

Diesel

Axle load

6000/12000(kg)

Angle(Approach/departure)

16/22(°)

Transmission/Gearbox

9 Forward & 1 Reverse Gear

Brake System

Pneumatic

Steering Gear

Power Assistant

Tire

12.00R20, 10 Pieces with 1 spare tire

Maximum speed

90(km/h)

Superstructure

Water Tanker

Tank Volume

25000 Liters / 25m3

Tank Material

5mm Q235B Carbon Steel

Sprinkling System:

Suction height of Truck Pump

>7m

Full Tank Suction Time

<15 minutes

Sprinkling width of front/rear/side Sprinkler

≥14m

Range of Water Cannon

≥35m

Remarks

Other Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs
