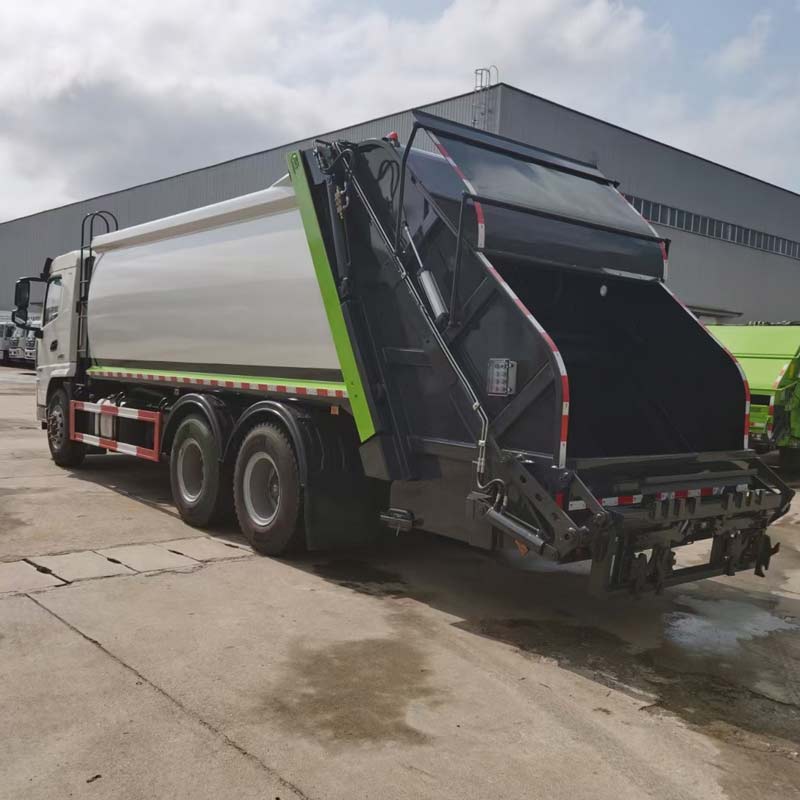

Shaanxi Heavy Truck 20m³ Export Rear Dual-Axle Compactor Garbage Truck

The Shacman rear tandem axle 20m³ compressed garbage truck is a heavy-duty export-oriented waste collection vehicle. Built on a robust 6×4 chassis, it features a 20 cubic meter sealed body, a high-compaction hydraulic system, and a reliable Weichai diesel engine (270–350 HP). Designed for municipal solid waste management in demanding environments, it offers durability, high payload efficiency, and compliance with international export standards.



What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.



What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.



How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us

Consult Now

1. Overview

The Shaanxi Heavy Truck 20m³ export rear dual-axle compactor garbage truck is specifically designed for overseas municipal sanitation markets. With robust configuration, reliable quality, and global adaptability, this truck is an ideal choice for waste collection in municipal sanitation, industrial parks, and large residential communities. It is suitable for operating conditions in Africa, Southeast Asia, South America, and other global regions, with complete export qualifications and support for customized modifications .

2. Key Features

2.1 Chassis & Powertrain

Feature	Description
Drive Configuration	Rear dual-axle (6x4), 20m³ capacity
Engine Options	Yuchai 270 HP (Euro VI standard) or Weichai 325-375 HP (adaptable to Euro III and above)
Transmission	Fast 9-10 speed manual, smooth shifting, durable for complex road conditions
Axle Configuration	4375+1350mm wheelbase, 280mm double-layer frame, 13T dual rear axles
Tires	11.00R20 or 12.00R20 heavy-duty tires
Emission Compliance	Euro III and above (customizable for target market)

2.2 Tank/Body Specifications

Feature	Description
Capacity	20 cubic meters (arc-shaped body)
Material	Q345 high-strength manganese steel, 5mm sides and bottom
Compaction Ratio	1:3 to 1:4 (bidirectional蠕动 compression technology + crushing scraper blade)
Loading Efficiency	~25% higher than same-volume competitors
Sealed Design	Fully sealed body with dual (middle + rear) sewage tanks, 100% leachate recovery rate
Locking Mechanism	Pneumatic sealing cover + adjustable wedge locking structure

2.3 Loading/Unloading System

Feature	Description
Standard Attachment	Rear flip bucket device, compatible with 120L-660L trash bins
Optional Attachments	Triangle hopper, floor hopper, and other loading structures
Control Modes	Three operation modes: cab front control, tail button control, and manual control
Control Panel	Silicone keypad, long service life, high protection rating

3. Technical Specifications

3.1 Vehicle Parameters

Parameter	Value
Vehicle Model	CL5251ZYS6SJ / CLQ5250ZYS6SXL
Chassis Model	SX1250MP6444C
Overall Dimensions (L×W×H)	9980-10310 × 2500-2550 × 3450 mm
Total Mass (GVW)	25,000 kg
Rated Load Capacity	8,870 – 9,170 kg
Curb Weight	15,700 – 16,000 kg
Approach/Departure Angle	23°/10°
Max Speed	85 km/h

3.2 Chassis Parameters

Parameter	Value
Axle Configuration	3 axles, rear dual-axle drive
Wheelbase Options	4375+1350 mm, 4375+1400 mm, 4575+1350 mm, 4775+1350 mm
Front Track	2023/2036/2058 mm
Rear Track	1860/1860 mm
Tire Specification	11.00R20 18PR
Tire Quantity	10 + 1 spare

3.3 Engine Options

Engine Model	Manufacturer	Displacement	Power	Emission
YCK08300-60	Yuchai	7,698 ml	221 kW (300 HP)	Euro VI
YCK08350-60	Yuchai	7,698 ml	257 kW (350 HP)	Euro VI
270 HP option	Yuchai	—	~199 kW	Euro VI
Weichai option	Weichai	—	325-375 HP	Customizable

3.4 Performance Parameters

Parameter	Value
Compaction Ratio	1:3 to 1:4
Loading Capacity per Cycle	~18 tons (18,000 kg) of household waste
Compaction Density	~0.9 tons per cubic meter
Single Cycle Time	≤20 seconds
Sewage Recovery Rate	100% (leachate)
Compatible Bin Sizes	120L – 660L

4. Key Technologies

Technology	Function
Bidirectional蠕動 Compression	Continuous compression during loading; improves efficiency
Crushing Scraper Blade	Breaks large waste before compaction
Fully Sealed Body	Prevents leakage and odor emission
Dual Sewage Tanks	100% leachate recovery, meets global environmental standards
Triple Control Modes	Cab + tail + manual control for operational flexibility
Electro-hydraulic Integration	CAN bus control with PLC programming
Remote Control	Standard wireless remote for convenient operation

5. Export Features

5.1 Global Adaptability

Feature	Description
Emission Standards	Adaptable to Euro III and above for different countries
Steering Options	Left-hand drive (standard) or right-hand drive (customizable)
Operating Environment	Adapts to high temperature, high humidity, and harsh conditions
Target Markets	Africa, Southeast Asia, South America, Middle East

5.2 Quality Assurance

Certification	Description
ISO 9001	Quality management system certification
IATF 16949	Automotive quality management certification
Production Process	Laser cutting, robotic welding, standardized production lines
Global Service Network	24/7 after-sales support via Shaanxi Heavy Truck global network; genuine parts available

6. Applications

Industry	Typical Use
Municipal Sanitation	Household waste collection in residential communities
Industrial Parks	Bulk waste collection from factories and industrial zones
Large Communities	High-volume waste collection from gated communities
Commercial Areas	Waste from shopping centers, markets, and business districts

7. Model Configurations

Popular Variants

Model	Engine	Features	Price (approx.)
Xuande Yi 6	Yuchai 300 HP	New cab, 10" multimedia screen, reverse camera	~¥370,000-380,000
Xuande Yi 3	Yuchai 300 HP	Semi-high roof cab, 7" LCD cluster, Bluetooth	~¥373,000
Xuande 3 Series	Yuchai 300 HP	Standard cab, 270L aluminum tank	~¥372,000

Note: Prices are estimates and subject to change based on configuration, options, and order quantity.

8. Buying Guide

8.1 Key Selection Factors

Factor	Consideration
Required Capacity	20m³ suitable for medium-to-large collection routes
Waste Type	Household waste, industrial waste, construction debris
Local Emission Standards	Confirm Euro level required in destination country
Loading Method	Standard flip bucket (120-660L bins) or optional hopper
Operating Environment	Road conditions, climate (high temp/humidity tolerance)
Steering Side	Left-hand drive (LHD) or right-hand drive (RHD)
Budget	New units: ~$50,000-60,000 USD FOB (estimate)

8.2 New vs. Used Considerations

Aspect	New Vehicle	Used Vehicle
Warranty	Full manufacturer warranty	Limited or none
Emission Compliance	Latest Euro VI standards	May not meet current regulations
Customization	Fully customizable (steering side, color, attachments)	As-is
Condition	New, never used	Requires thorough inspection
Best for	Long-term ownership, critical operations	Budget-conscious buyers

9. Delivery & Service

Item	Details
Lead Time (new)	4–8 weeks (depending on configuration and order quantity)
Shipping	RORO / Flat rack / Container
Warranty	12 months (chassis + body)
Certification	ISO 9001, IATF 16949, CCC, Euro emission compliance
After-Sales Service	24/7 video technical support; global service network via Shaanxi Heavy Truck
Spare Parts	Genuine parts available through manufacturer network
Documentation	Commercial invoice, packing list, bill of lading, certificate of origin, owner's manual


