1. Core Electric Powertrain (The "Three Electric" Systems)

• Battery Pack:

• AC Slow Charge (0-100%): Approximately 8-10 hours.

• DC Fast Charge (30-80%): Supported by most models, taking about 1-2 hours (dependent on charger power).

• Warranty: Battery core components typically carry a warranty of 5 years or 200,000 km (confirm exact policy).

• Type: Mainly uses Lithium Iron Phosphate (LFP) batteries, valued for high safety and long cycle life.

• Capacity: Common configurations include ~41.86 kWh and ~49.92 kWh.

• Supplier: May include major brands like CATL, Gotion High-tech, or EVE Energy.

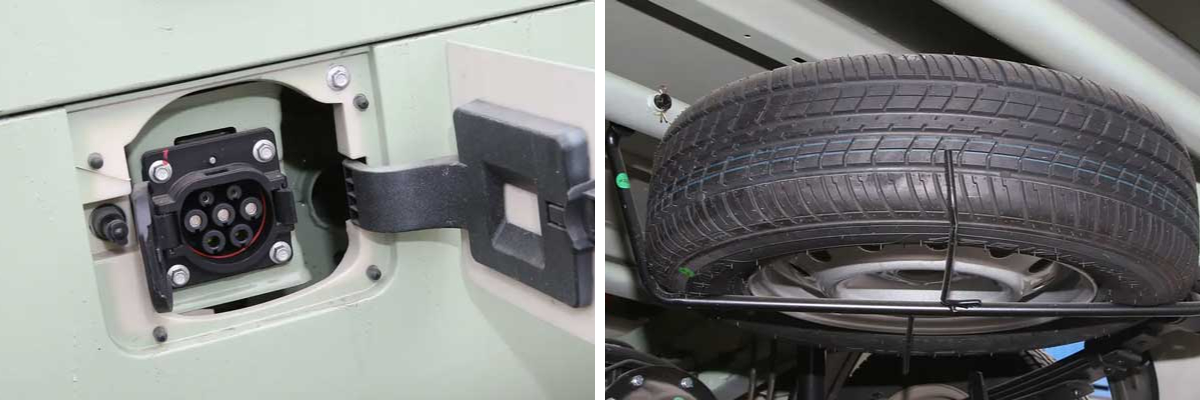

• Charging:

• Electric Drive Motor:

• Type: Permanent Magnet Synchronous Motor.

• Peak Power: Commonly around 60 kW.

• Peak Torque: Commonly around 220 N·m.

• Characteristics: Instant torque delivery for brisk acceleration, smooth and quiet operation with no gear shifts.

• Electronic Control Unit (ECU):

• Manages vehicle energy distribution, motor control, and regenerative braking.

• Regenerative Braking: Recovers kinetic energy during deceleration to extend driving range.

2. Performance & Range

• CLTC Comprehensive Range: Typically between ~240 km to ~300 km, depending on battery capacity.

• Top Speed: Approximately 90 km/h, sufficient for urban and suburban limits.

• Payload Capacity: Comparable to its ICE counterparts, often around 1 metric ton (check official vehicle certification).

3. Chassis & Dimensions

• Frame: Adapted from proven ICE platform for reliable load-bearing.

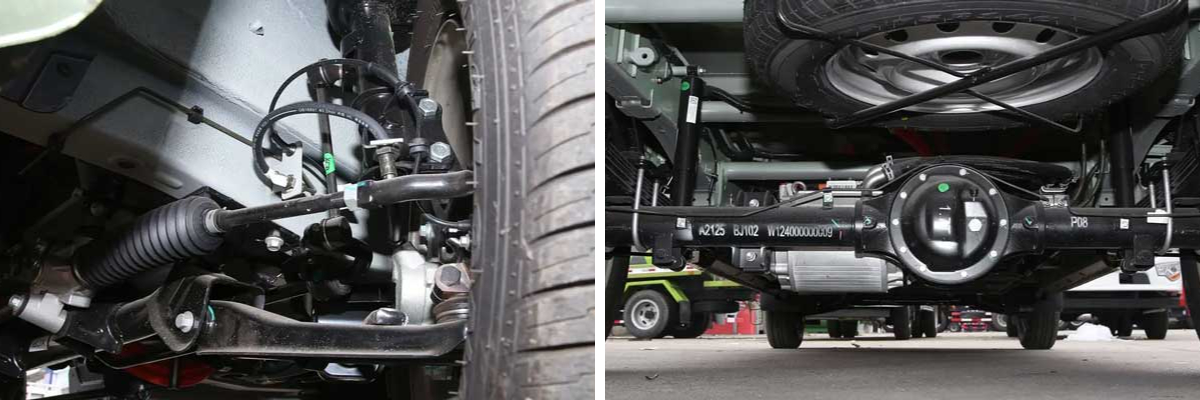

• Suspension: Independent MacPherson strut front; Leaf spring rear (number of leaves varies by load rating).

• Tires: Usually 185R14LT load-rated tires (rear duals).

• Body & Cargo Box:

• Cab: Primarily Single Cab (2 seats).

• Body Types: Flatbed truck and Enclosed van are the most common.

• Example Cargo Box (Flatbed): Length ~3.1m to ~3.7m, Width ~1.6m to ~1.7m.

4. Interior & Features

• Instrument Cluster: EV-specific digital display showing state of charge, remaining range, energy flow, voltage, etc.

• Gear Selector: Rotary dial or lever-style electronic selector.

• Other Features: Standard power windows, central locking, manual A/C, radio. Higher trims may offer a touchscreen and rearview camera.

5. Key Advantages & Use Cases

1. Exceptional Economy: Electricity cost is significantly lower than diesel/petrol. Reduced maintenance (no engine oil, filters, etc.).

2. Urban Access Advantages: Often exempt from traffic restrictions (like time-based bans) applied to conventional trucks in many cities.

3. Quiet & Clean Operation: Ideal for night deliveries, operations within residential complexes, warehouses, and eco-sensitive zones.

4. Fixed-Route Specialist: Perfect for predictable, intra-city delivery routes (e.g., courier/logistics, supermarket supply, appliance delivery).
