1. Dimensions & Chassis

• Common Variants:

• Short Wheelbase, Mid Roof: Length typically ~5.3m to 5.5m, Width ~2.0m, Height ~2.4m.

• Long Wheelbase, High Roof: Length up to ~5.99m, Width ~2.0m, Height ~2.5m.

• Wheelbase: Common SWB ~3.07m | LWB ~3.75m.

• Key Feature: Compared to the larger Tunland X6/X7, the X5 offers a shorter overall length and wheelbase, providing better maneuverability and ease of parking in urban environments.

• Suspension:

• Front: MacPherson Strut Independent Suspension.

• Rear: Solid Axle with Leaf Springs (typically 3 or 5 leaves for strong load capacity).

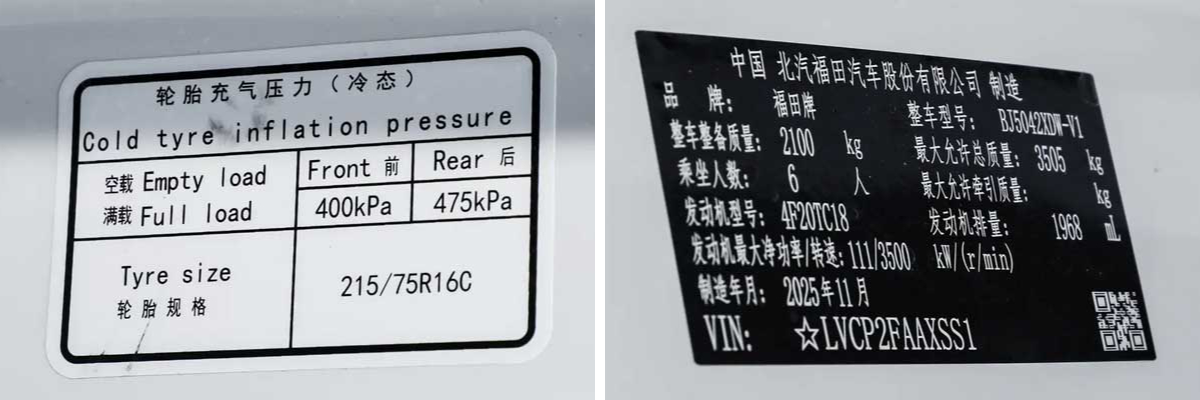

• Tires: Common sizes are 205/75 R16 LT or 215/75 R16 LT (Light Truck tires).

2. Powertrain

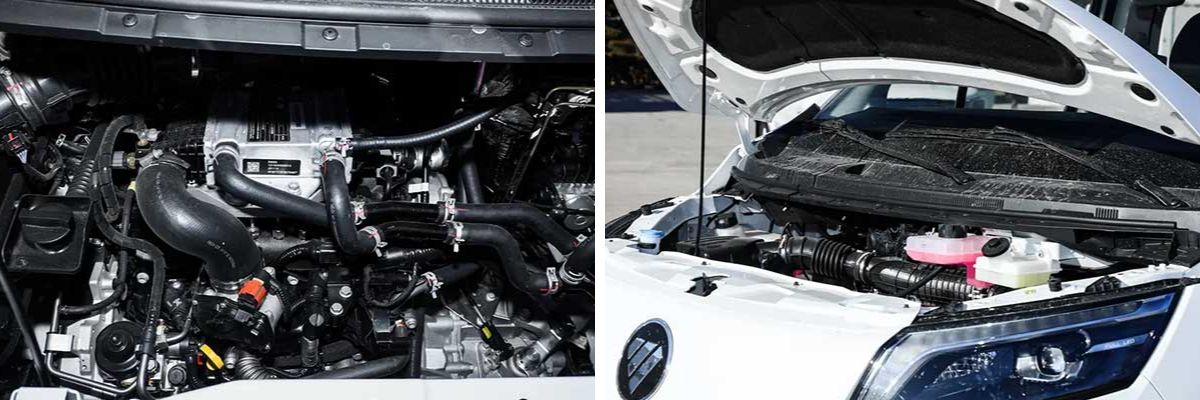

• Engine Options (Typical):

• Model: Foton Oukang 2.0L Turbocharged Diesel.

• Max Power: ~90 kW to 110 kW (122 HP to 150 HP), depending on tuning.

• Max Torque: ~300 Nm to 330 Nm (Strong low-end torque suitable for loaded starts).

• Diesel (Primary):

• Gasoline (Available in some markets): Usually a 2.4L naturally aspirated engine.

• Transmission:

• Standard: 5-speed or 6-speed Manual Transmission (MT).

• Optional: Automatic Transmission (AT) may be available on higher-spec passenger versions.

3. Cargo Space & Payload

• Internal Cargo Dimensions (Approx.):

• Max Cargo Length: ~2.7m (SWB) to ~3.8m+ (LWB).

• Max Cargo Width: ~1.7m.

• Max Cargo Height: ~1.4m (Mid Roof) to ~1.6m+ (High Roof).

• Load Capacity:

• Payload Capacity: Ranges from ~1.0 to 1.5 metric tons, depending on configuration.

• Gross Vehicle Weight (GVWR): Approximately 3.5 to 4.0 tons.

• Rear Door: Primarily 180° swing-out doors for convenient loading/unloading.

4. Seating Configurations

Flexible layouts are offered:

• Panel Van: 2 seats (Driver + Front Passenger).

• Passenger Van: Common layouts include 5, 6, 7, or 9 seats.

5. Key Features (Varies by trim)

• Safety: Standard ABS + EBD. Driver airbag is often optional.

• Comfort & Convenience: Power windows, central locking, air conditioning, cloth seats. Higher trims may feature a multifunction steering wheel and touchscreen with rear-view camera.

• Commercial Features: Durable cargo flooring, cargo tie-down hooks, sliding side door.
