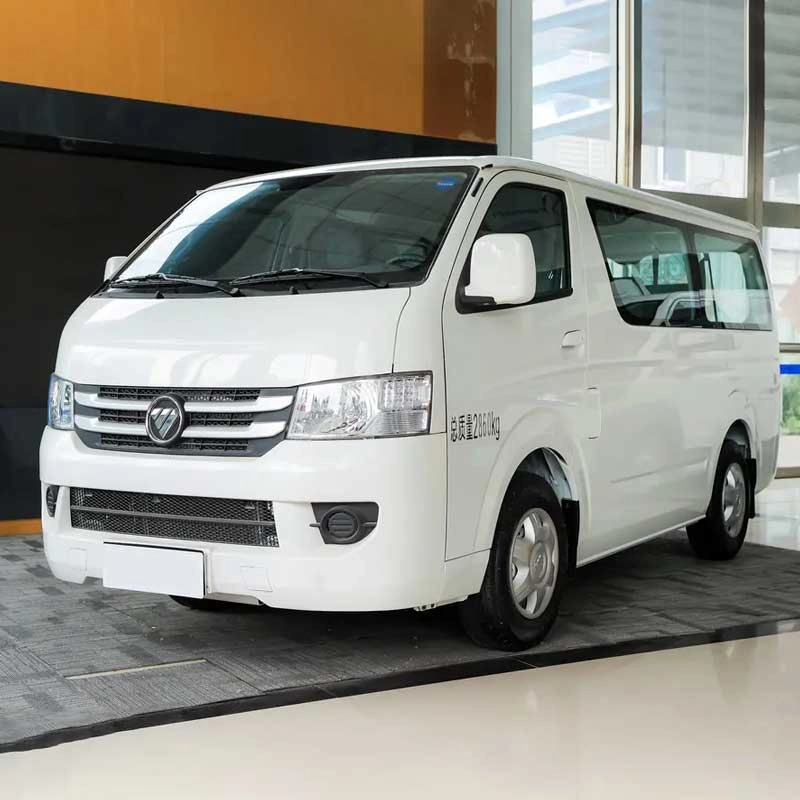

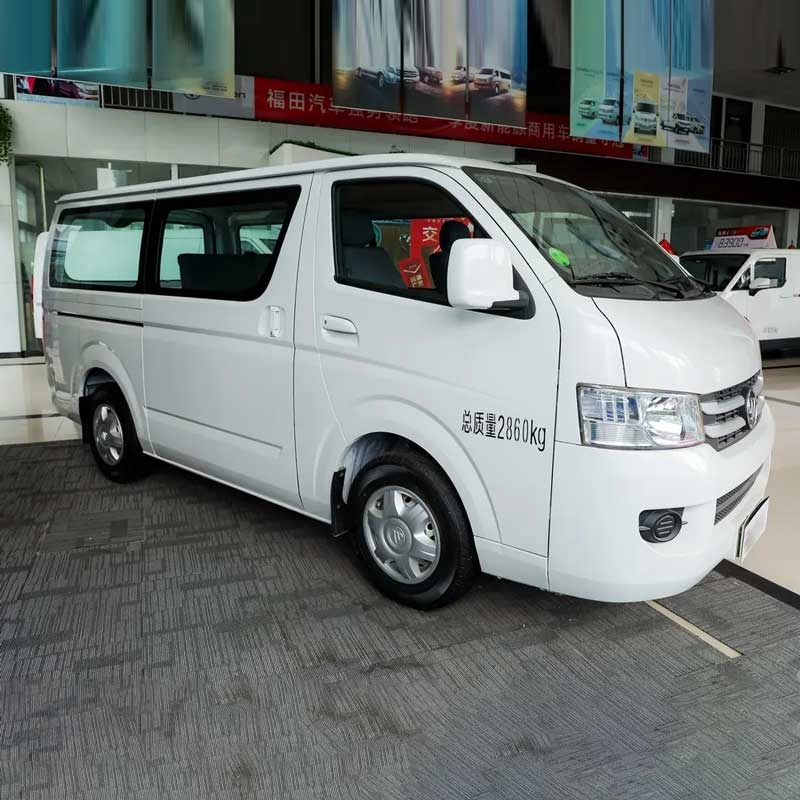

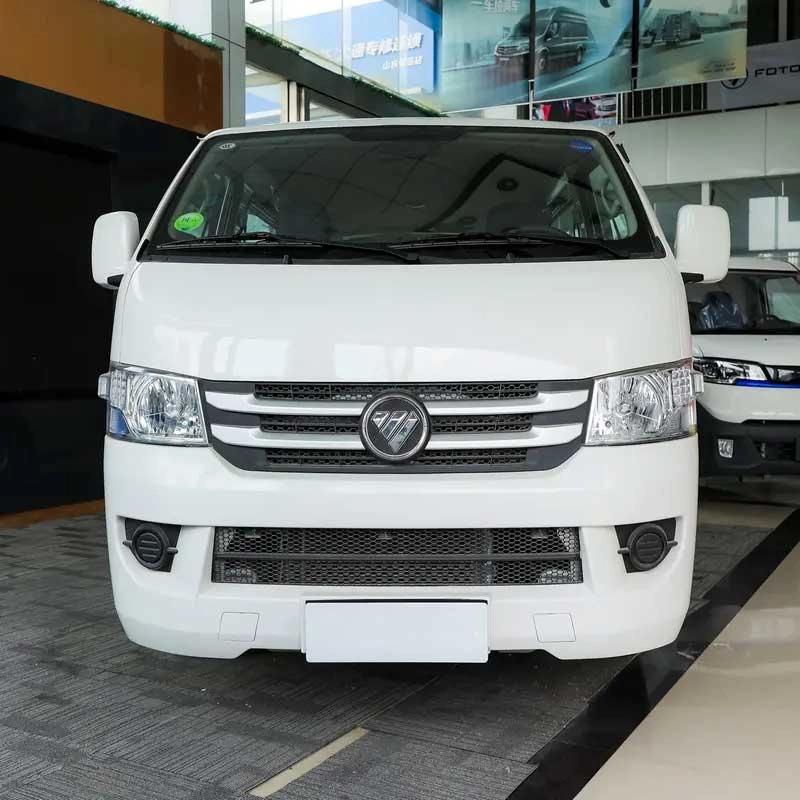

Futian Auto G7 van with extremely large volume

Futian Auto G7 van with extremely large volume
Vehicle Type: Light Bus / Panel Van
Drive Configuration: Front-engine, Rear-wheel drive (FR)
Seating Layout: Commonly available in 2-seat (van), 5-seat, 6-seat, 7-seat, and 9-seat configurations.

What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.

What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.

How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us
Consult Now
产品描述

1. Powertrain

  • Engine:

    • 2.4L Displacement: 2378 mL

    • Max Power: ~ 100-118 kW (136-160 HP)

    • Max Torque: ~ 200-230 N·m

    • Gasoline Version: Primarily equipped with the Mitsubishi-based 4G69S4M 2.4L naturally aspirated gasoline engine or a 2.0L naturally aspirated engine.

    • New Energy Version: A pure electric version (View G7 EV) is also available.

  • Transmission: 5-speed Manual Transmission is standard.

  • Emission Standard: Complies with China National VI (国六) standards.

2. Dimensions (Typical Versions)

The View G7 is typically offered in short-wheelbase (SWB) and long-wheelbase (LWB) variants.

ItemShort-Wheelbase (SWB) Approx.Long-Wheelbase/High-Roof (LWB) Approx.

Length × Width × Height (mm)

4840~5320 × 1695 × 1980/2240

5320~5700 × 1695 × 2240/2440

Wheelbase (mm)

2570~2890

3050~3430

Max Interior Volume (m³)

~6.0 - 7.5

~7.5 - 9.5 (larger for high-roof)

Vs. View G5: The G7 offers more flexible sizing, with a more compact SWB option and LWB versions comparable to or larger than the G5.


1765786414393546

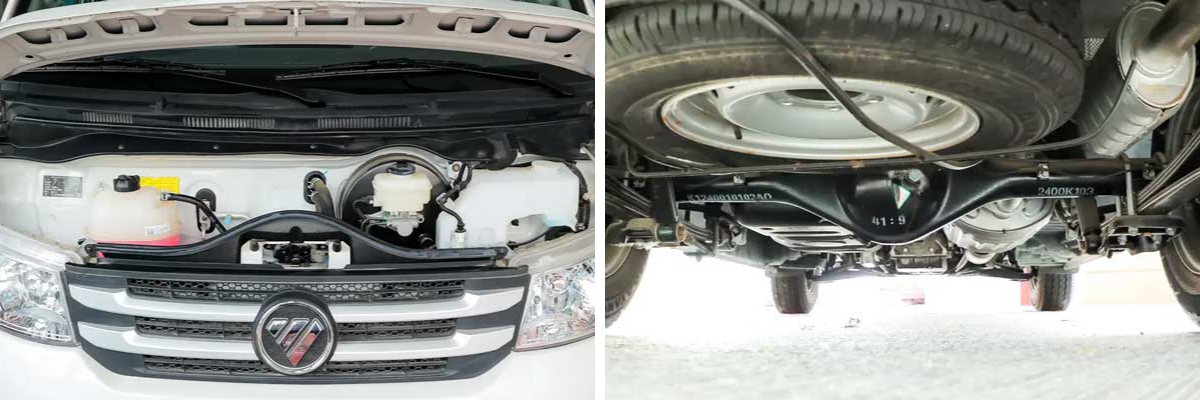

3. Chassis & Suspension

  • Front Suspension: Double-wishbone with torsion bar spring

  • Rear Suspension: Solid axle with leaf springs (More leaves for cargo versions, fewer for passenger versions to improve comfort).

  • Braking System: Front disc / Rear drum brakes

  • Tire Size: Commonly 185 R14 LT or 195/70 R15C (Commercial/Reinforced tires).



1765786448136146

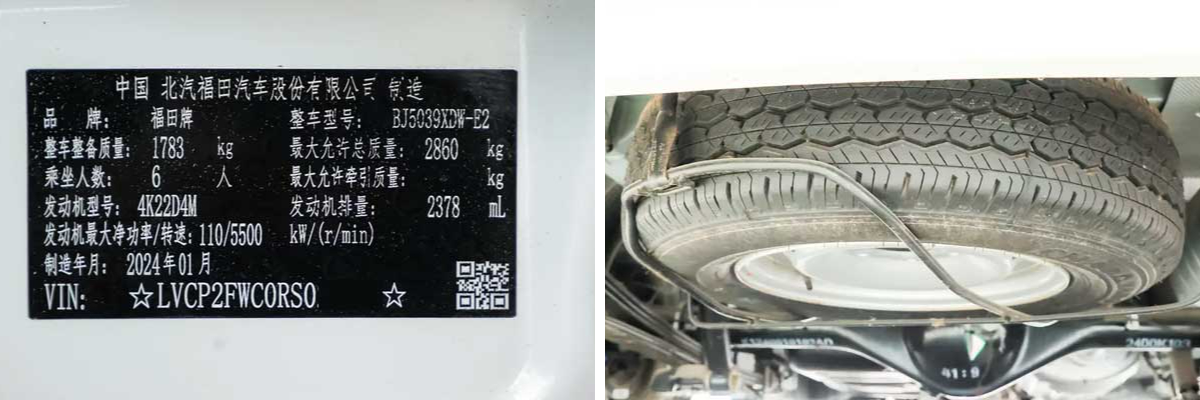

4. Cargo/Interior Space (Key Selling Point)

  • Interior Design: Boxy, utilitarian cabin with high space efficiency. Rear doors are primarily dual swing-type (some older versions may have a lift-up door).

  • Flexibility: Rear seats can be side-tipped, folded forward, or removed for quick conversion between passenger and cargo modes.

5. Key Features & Equipment

  • Safety Features: ABS + EBD, driver airbag (on some mid/high trims), central locking. Generally offers slightly better equipment than the base G5 cargo version.

  • Comfort/Convenience: Manual air conditioning, fabric seats, radio + USB. Higher trims may include alloy wheels, rear parking sensors, and a touchscreen.

  • Exterior: Styling is slightly more rounded than the G5 but remains functional.



产品展示
  • a82c183b703718fb66e4e6f1103335b4
  • b9cbe9180b53dc21a042a7f718322b3d
  • eb5e49bbee5f7157fc774163db03650e
  • 1756f172a21a2e3819065a4eb45c83c7
  • 0000
  • 0571ad39cf608dcd8d512870e179e9df
  • 1a65d21488b4e2d8847f41708ec95314
  • 76b388e561fdcde36690d22480289d71
  • 5a543c437051e79db2477dc4038c3a3d_clear
  • d7caa0e033144d5cc8655780bd057e2c_clear
  • 3c863cc5ac13582e6e21546371ff8f6e
  • 001_clear
