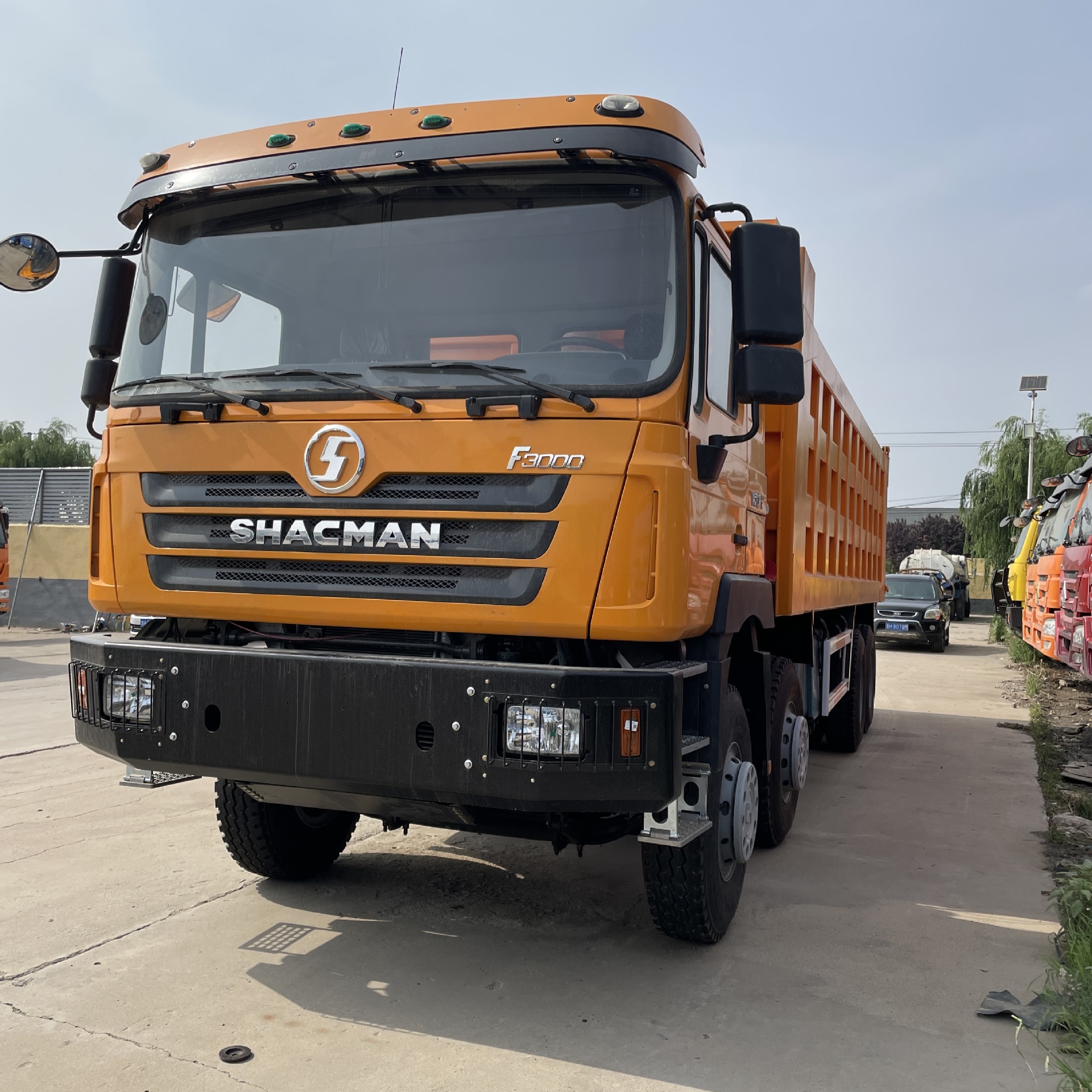

Shacman 8x4 Dump Truck

The Shacman Delong 3000 dump truck is a powerful and diverse heavy-duty dump truck model.
The Shacman Delong 3000 dump truck offers a variety of configuration options, including containers of different horsepower and lengths, to meet different working conditions and transportation needs. For example, there are models with different horsepower such as 290 horsepower and 310 horsepower, as well as cargo boxes of different lengths such as 5.4 meters, 5.6 meters, 7.4 meters, and 7.6 meters.



What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.



What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.



How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us

Consult Now

1. Overview

The Shacman 8×4 dump truck is a heavy-duty tipper built on the reliable Shacman chassis with German MAN technology. Designed for construction, mining, infrastructure projects, and bulk material transport, it offers robust performance, durability, and excellent value for money in global markets.

2. Key Features

Feature	Description
Drive Type	8×4 (12 wheels)
Chassis Options	F3000 / X3000 / Delong SX series
Engine	Weichai WP series, 270 – 430 HP (Euro II – Euro V)
Transmission	Fast 9-speed or 10-speed with PTO
Front Axle	7.5T – 9.5T × 2
Rear Axle	13T – 16T × 2
Suspension	Leaf spring (multi-leaf)
Tires	11.00R20 / 12.00R20 (12+1 spare)
Fuel Tank	300L – 400L
Brake System	Air brake + ABS
Cab	Full steel, hydraulic tilt, A/C optional
Lifting System	Front hydraulic telescopic cylinder

3. Specifications (Representative Models)

Model	Chassis	Engine	Power	Body Length	Body Volume	GVW
F3000 8×4	F3000	WP10.340E32	340 HP	6.5m	20 m³	31,000 kg
X3000 8×4	X3000	WP10.350E53	350 HP	7.2m	22 m³	31,000 kg
Delong 8×4	Delong SX	WP12.430E50	430 HP	8.0m	26 m³	31,000 kg
F3000 Heavy	F3000	WP10.290E32	290 HP	6.0m	18 m³	31,000 kg

4. Dump Body (Tipper) Specifications

Parameter	Standard	Heavy-Duty
Body length	5.6m – 8.0m	6.5m – 8.0m
Body width	2,300 – 2,400 mm	2,350 – 2,400 mm
Body height	1,200 – 1,500 mm	1,500 – 1,800 mm
Floor thickness	8mm	10mm
Side thickness	6mm	8mm
Volume	18 – 26 m³	22 – 30 m³

5. Engine Options

Engine Model	Displacement	Power	Torque	Emission
WP10.290E32	9.7L	290 HP	1,160 N·m	Euro II
WP10.340E32	9.7L	340 HP	1,350 N·m	Euro II
WP10.350E53	9.7L	350 HP	1,600 N·m	Euro V
WP12.430E50	11.6L	430 HP	2,060 N·m	Euro V

6. Chassis Configurations

Chassis	Wheelbase	Frame	Front Axle	Rear Axle
F3000 8×4	1,800+3,200+1,350 mm	8+8mm double-layer	7.5T	16T
X3000 8×4	1,800+3,600+1,350 mm	8+8mm double-layer	9.5T	16T
Delong 8×4	1,800+4,000+1,350 mm	8+8+8mm triple-layer	9.5T	16T

7. Applications

Application	Recommended Model	Body Length
Urban construction	F3000 340 HP	6.0-6.5m
Mining / quarry	X3000 350-430 HP	6.5-7.2m
Bulk material transport	Delong 430 HP	7.5-8.0m
General earthmoving	F3000 290-340 HP	5.6-6.5m

8. Buying Guide

Factor	Consideration
Body volume	18-30m³ based on material density
Emission standard	Euro II-V for export; confirm local requirements
Terrain	Heavy terrain needs 430 HP + reinforced axles
Steering side	Left-hand drive standard; RHD available
Budget	New: $40,000 – $55,000 USD FOB

9. Delivery & Service

Item	Details
Lead time	15-30 days
Shipping	RORO / Flat rack / Container
Warranty	Chassis: 12 months; Dump body: 12 months
Certification	ISO 9001, CCC, SGS/BV available
Support	24/7 online guidance


