Telescopic Boom Crane

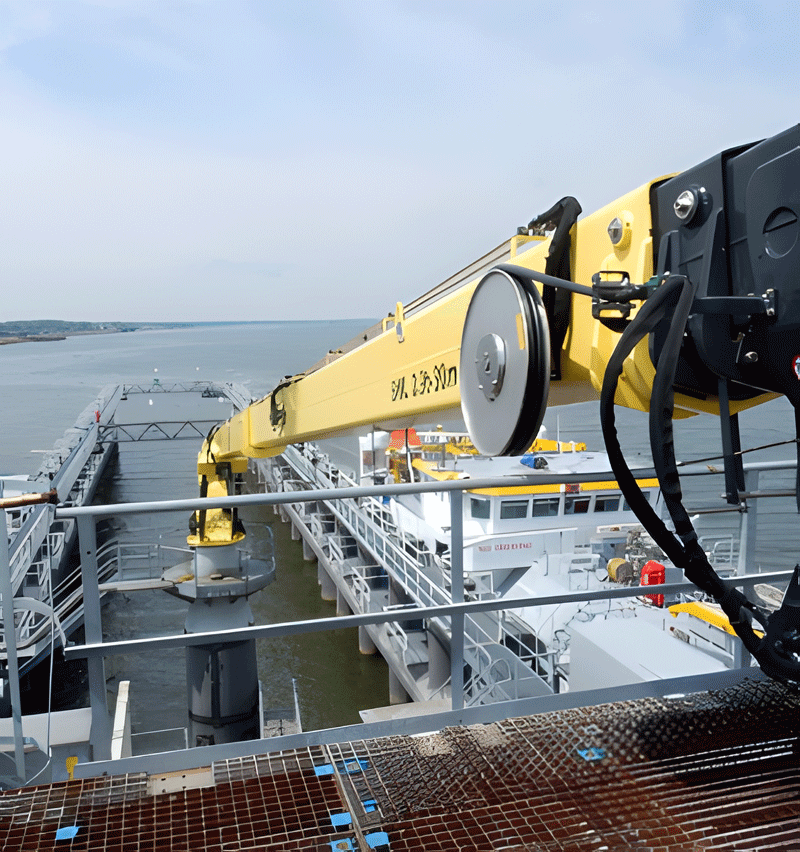

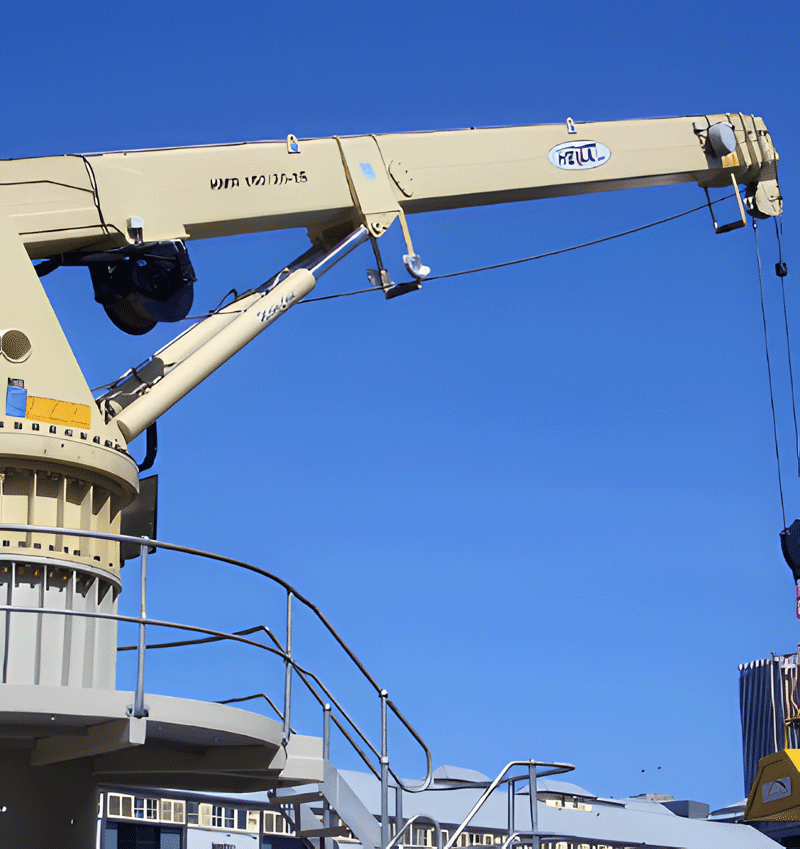

The possibility of different boom positions enlarges the working area, making the crane a flexible solution for ships and offshore units.
Customers use these cranes for ship-to-ship operations, provision handling and cargo handling, as well as buoy and hose handling. The cranes can operate in any sea state.
Our telescopic boom cranes, the so called HMR type, are equipped wih slewing rings.



What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.



What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.



How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us

Consult Now

1. Overview

A telescopic boom crane features a multi-section boom that extends and retracts hydraulically to achieve variable working lengths. Unlike lattice boom cranes that require manual assembly, telescopic booms offer rapid setup, easy transport, and flexible reach adjustment—making them the preferred choice for mobile cranes, truck-mounted cranes, marine cranes, and industrial applications.

2. Key Features

Feature	Description
Hydraulic telescoping system	Single or multi-stage cylinder with rope pull or automatic internal locking
Boom sections	2 to 7 sections (Liebherr up to 7 sections)
Rapid setup	No boom assembly required; extend and retract in minutes
Variable outreach	Continuous adjustment from minimum to maximum length
Compact transport	Boom retracts for road or vessel transport
360° continuous slewing	Full rotation for flexible positioning
Load moment limiting (LMI)	Real-time monitoring of load, angle, radius
Multiple mounting options	Truck, crawler, deck-mounted, pedestal

3. Types of Telescopic Boom Cranes

Type	Description	Best For
Truck-Mounted (Boom Truck)	Crane mounted on commercial truck chassis; roadable	Construction, utilities, material delivery
All-Terrain	Multi-axle, high mobility on/off road	Heavy construction, industrial projects
Telescopic Crawler	Boom on tracked undercarriage	Rough terrain, confined sites, bridge work
Marine/Offshore Deck Crane	Pedestal-mounted on vessels or platforms	Ship cargo, provision handling, offshore
Industrial/Fixed	Stationary pedestal or wall mount	Factories, workshops, loading docks

4. Telescoping Technologies

Hydromechanical System (Liebherr)

Uses single-stage double-action cylinder + rope pull
For booms with up to 3 telescoping sections
Simple, fast extension/retraction

TELEMATIK High-Speed System (Liebherr)

Single hydraulic cylinder with internal locking
For booms with up to 7 telescoping sections
Automatic, fully controlled via LICCON screen

Synchronous/Sequential (SANY)

Wire rope row driven by cylinder(s)
Options: synchronous, sequential, or combined
Used on 4–5 section booms

5. Specifications (Representative Models)

Truck-Mounted Crane – Link-Belt HTC-86100

Parameter	Value
Capacity	100 US tons (85 metric tons)
Main boom length	38′ – 140′
Fly jib	35′-58′ (2-piece bi-fold)
Engine	Cummins ISX12, 450 hp
Transmission	ZF TraXon 12-speed
Transport weight	~96,000 lbs with counterweight

Boom Truck Crane – Tadano TC500 Series

Parameter	TC50128	TC50155
Capacity	50 USt	50 USt
Main boom	128 ft	155 ft
Max tip height	185 ft	202 ft
Jib (optional)	32-49 ft	39 ft
Outrigger spread	23.3 ft	23.3 ft

Telescopic Crawler Crane – Tadano GTC-600-2

Parameter	Value
Capacity	60 tons
Main boom	113.8 ft full power
Extension + jib	28.9 ft / 49.9 ft
Gradeability	85% (best in class)
Transport	1 truck (unique in class)
Engine	Cummins QSB6.7, 260 hp

Telescopic Boom Crawler – XCMG XGTC30L5

Parameter	Value
Capacity	30 ton class
Main boom	42 m
Max combined reach	51 m (with 9m jib)
Hoisting speed	140 m/min
Travel speed	3 km/h
Track undercarriage	Excavator-style for soft ground

Marine/Offshore Deck Crane – PALFINGER PTM/DKT Series

Series	Outreach (m)	Capacity (t)	Lifting Moment (kNm)
PTM 200	6.0-14.0	3.3-1.0	133-198
PTM 600	7.5-17.5	7.5-2.2	385-563
PTM 1800	12.0-36.0	16.0-1.8	648-1920
DKT500	32.0	35.0	5000
DKT800	37.0	50.0	8000

High-Reach Boom Truck – Altec AC40E-152S

Parameter	Value
Max lifting capacity	80,000 lb (36.3 t)
Main boom	152 ft, 6-section
Max sheave height	207 ft
Aerial mode (optional)	217 ft platform height
Winch	15,000 lb 2-speed

6. Key Advantages

Advantage	Benefit
Fast setup	No lattice assembly; hydraulic extension in minutes
Variable reach	Continuous length adjustment for precise positioning
Compact transport	Retracted boom meets road/transport regulations
Single-operator	One person can extend, operate, and retract
Versatile mounting	Truck, crawler, deck, pedestal options
Modern controls	LMI, work area definition, anti-two-block, data logging

7. Applications

Industry	Typical Use	Recommended Type
Construction	Steel erection, precast panel, HVAC	Truck-mounted, all-terrain
Infrastructure	Bridge girders, utility poles, pipelines	Telescopic crawler
Utilities	Power line, substation, transformer	Boom truck
Marine	Cargo handling, provisioning, service	Deck crane
Offshore	Platform maintenance, supply transfer	Offshore pedestal
Wind Energy	Turbine components, substation	Large crawler or marine
Industrial	Plant maintenance, heavy equipment	Industrial/fixed

8. Key Technologies & Options

Technology	Function
LMI / RCL	Load Moment Indicator with real-time monitoring
WADS	Work Area Definition System (define lift zones)
Active Heave Compensation (AHC)	Compensates vessel motion for offshore
AOPS / MOPS	Anti-two-block and overload protection
Constant Tension	Maintains rope tension for offshore
Remote Control	Radio remote for ground operation
ATEX Certification	Explosion-proof for hazardous areas
Winterization	Extreme cold operation
Man-riding	Personnel lifting certified
Jib options	Offsettable, foldable, or fixed extensions

9. Surface Protection (Marine/Offshore)

Standard	Description
NORSOK M-501 system 1	Highest marine standard
ISO 12944 CX	High-corrosivity protection
Metalizing / Hot dip galvanizing	Optional enhanced protection
Ceramic coating / Stainless steel cylinders	Special corrosion protection

10. Buying Guide

Factor	Consideration
Max lifting capacity	Weight at max radius (refer to load chart)
Max working radius	Required reach determines boom length
Mounting type	Truck / crawler / deck / pedestal / wall
Transport constraints	Road legal weight/height for mobile units
Operating environment	Construction / marine / offshore / hazardous
Certification required	CE, ABS, BV, DNV, LR, CCS
Personnel lifting	Need man-riding certification?
Jib / extension needed	Offset, foldable, or fixed jib
Control preference	Cab / remote / platform

For Truck-Mounted Crane

Vehicle GVWR and chassis specifications
Mounting space behind cab
PTO availability for hydraulic power

For Marine/Offshore Crane

Vessel/platform classification society
Deck space and pedestal diameter
High sea state operation (AHC requirement)

11. Delivery & Service

Item	Details
Lead time	30–90 days (custom configurations longer)
Shipping	RORO / Flat rack / Container / Bulk vessel
Warranty	12 months (standard)
Certification	CE, ABS, BV, DNV, LR, CCS (buyer's choice)
Inspection	3rd party load test certificate available
Service network	Global service support (PALFINGER: 300+ engineers)
Support	24/7 online technical guidance


