1. Overview

Hookloaders and skiploaders are two types of hydraulic lifting systems mounted on trucks or trailers, designed for loading, transporting, and dumping containers, skips, or interchangeable bodies. Both systems are widely used in waste management, recycling, construction, and municipal services .

While they serve similar functions, their lifting mechanisms and typical applications differ significantly.

Sources:

2. Hookloader – Detailed Overview

2.1 What is a Hookloader?

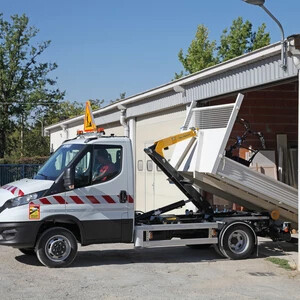

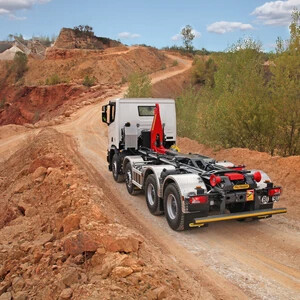

A hookloader uses a single large hydraulic hook combined with rollers on the rear edge of the body to pull a large container onto the back of the truck. This sliding action gives them the alternative name "roll-on/roll-off" (RORO) trucks .

2.2 Key Features

2.3 How a Hookloader Works

1. Stabilization: Axle jacks or outriggers deployed to stabilize truck

2. Hook Engagement: Hook arm lowers and engages container's front bar

3. Lifting & Rolling: Hydraulic system lifts container and pulls it onto rear rollers

4. Locking: Container locks into place on chassis

5. Unloading: Reverse process – container rolled off and lowered to ground

The entire operation is controlled from in-cab controls or external control boxes. Modern systems feature electric or pneumatic controls to avoid water/dirt issues on site .

2.4 Representative Models & Specifications

Harsh HH26 Hookloader

Hyva Titan Hookloader Range

Palfinger HT 160 Hooklift

2.5 Typical Applications

2.6 Key Components

2.7 Advanced Technologies

3. Skiploader – Detailed Overview

3.1 What is a Skiploader?

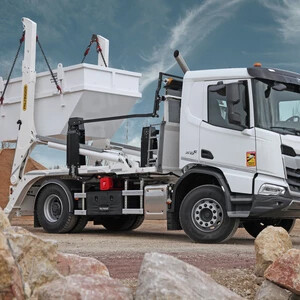

A skiploader uses two hydraulic arms and two sets of chains to lift a skip from the ground onto the truck chassis. Unlike hookloaders that slide containers on rear rollers, skiploaders use a lifting motion where the arms come forward from the back of the truck and sit the container onto the vehicle .

3.2 Key Features

3.3 How a Skiploader Works

1. Positioning: Truck reverses toward skip on ground

2. Arm Extension: Telescopic arms extend to reach skip

3. Chain Engagement: Chains hook onto skip lifting points

4. Lifting: Hydraulic arms raise skip off ground

5. Loading: Arms pull skip onto chassis

6. Transport: Skip secured for transport

7. Unloading: Reverse process – skip lowered to ground

Operation can be performed from cab or via radio remote control for precision and safety .

3.4 Representative Models & Specifications

Harsh HS14T Demountable Skiploader

Procompactor Skip Loader Range

3.5 Typical Applications

4. Hookloader vs. Skiploader – Key Differences

Sources:

5. Demountable Skiploader – Hybrid Solution

A unique innovation is the demountable skiploader, which can be loaded onto a chassis fitted with a conventional hookloader system. This effectively doubles the vehicle's operating versatility – running as a standard hookloader for one trip, then quickly changed to a skiploader for the next job .

5.1 Key Benefits

6. Buying Guide

6.1 Key Selection Factors

6.2 Chassis Selection

6.3 Used Equipment Inspection Checklist

When purchasing used hookloader or skiploader equipment :

6.4 Leading Manufacturers

7. Delivery & Service
