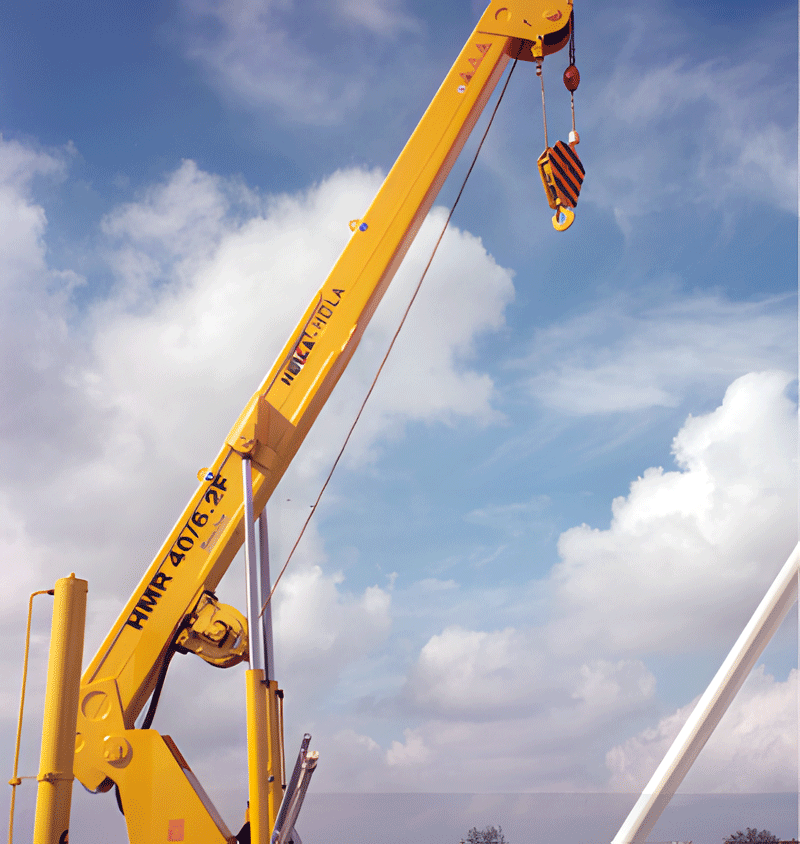

Fixed boom crane

Equipped with a winch and a hook, these powerful cranes carry out all kinds of hoisting activities. They are especially suited for operations in a ATEX zone.

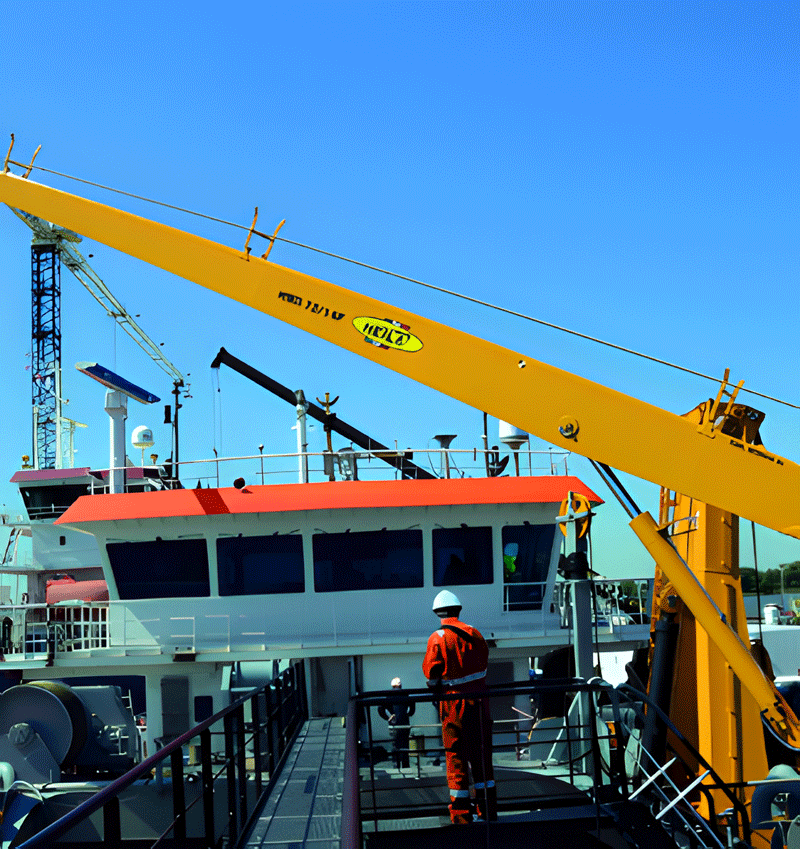

The name fixed says it all: stiff, so no folding, extending or retracting. We can customise the crane on request. Fixed boom cranes are most suitable for general cargo handling and service on ships and offshore units with ample deck space.
Fixed boom cranes can also be used for hose handling and lifting cargo from ship to ship in various sea states.



What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.



What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.



How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us

Consult Now

1. Overview

A fixed boom crane features a rigid, straight boom with a constant length and angle that cannot be extended, retracted, or folded . This simple, robust design offers superior stability and load capacity, making it the preferred choice for heavy lifting in marine, offshore, industrial, and port applications where space is ample and repetitive lifting tasks are required .

2. Key Features

Feature	Description
Rigid boom structure	Non-extendable, non-foldable box-type or lattice boom
High load capacity	5 – 150+ tons (typical range 8-50 tons marine)
Working radius	10 – 50+ meters
Slewing angle	360° continuous
Power options	Electric, electro-hydraulic, or diesel-hydraulic
Operation	Step-less speed control, simultaneous multi-function operation
Safety systems	AOPS/MOPS overload protection, RCL controller
Corrosion protection	ISO 12944 CX / NORSOK M-501 (marine/offshore grade)
Certifications	ABS, BV, CCS, DNV, LR, KR, NK, RINA, RMRS

3. Specifications (Representative Models)

Marine / Offshore Fixed Boom Cranes

Model	SWL (t)	Boom Length (m)	Radius Range (m)	Hoist Speed (m/min)	Application
PF 120	1.0	3.0-4.0	3.0-4.0	—	Offshore wind
PF 160	1.0	4.5-5.5	4.5-5.5	—	Offshore wind
PF 200	1.0	6.0-7.0	6.0-7.0	—	Offshore wind
PB 1650	10	10-30	10-30	—	Bulk carriers, offshore
PB 1800	30	20-30	20-30	—	Offshore platforms
PB 3030/5030	50	20-50	20-50	—	Heavy lift offshore
30T Model	30	—	4-30	18.5-63	Bulk carriers, containers
36T Model	36	—	4.5-30	16-55	Bulk carriers, containers
CBO Series	50-100	—	—	—	Fixed platforms, jack-ups

Customizable Parameters (YFM Fixed Boom Crane)

Parameter	Typical Value
SWL	Up to 50+ tons
Max working radius	Up to 50+ meters
Hoisting speed	10-20 m/min
Hoisting height	Up to 30 meters
Slewing speed	0-1 rpm
Luffing time	~60 seconds
Power supply	AC380V-690V, 50/60Hz, 3P

4. Key Advantages

Advantage	Benefit
Superior stability	Rigid boom design provides excellent load stability, especially in challenging weather or rough seas
High load capacity	Handles heavier loads than comparably sized knuckle boom cranes
Low maintenance	Fewer moving parts reduces maintenance requirements and costs
Lower operational cost	Simpler design translates to lower ownership costs
Long service life	Robust construction with 25-year design life typical
Plug-and-play installation	Quick installation with pre-assembled components

5. Fixed Boom vs. Knuckle Boom Comparison

Feature	Fixed Boom	Knuckle Boom
Boom design	Rigid, straight	Articulated, folding
Flexibility	Low	High
Maneuverability	Limited	Excellent in confined spaces
Load capacity	Higher for same size	Lower
Stability	Superior	Good
Storage footprint	Larger	Compact (folds)
Maintenance	Lower	Higher
Cost	Lower initial & operational	Higher
Best for	Heavy repetitive lifts, open areas	Precise positioning, confined spaces

6. Applications

Industry	Typical Use	Recommended Model
Marine / Vessel	Cargo handling on bulk carriers, container ships, general cargo	30-50T deck cranes

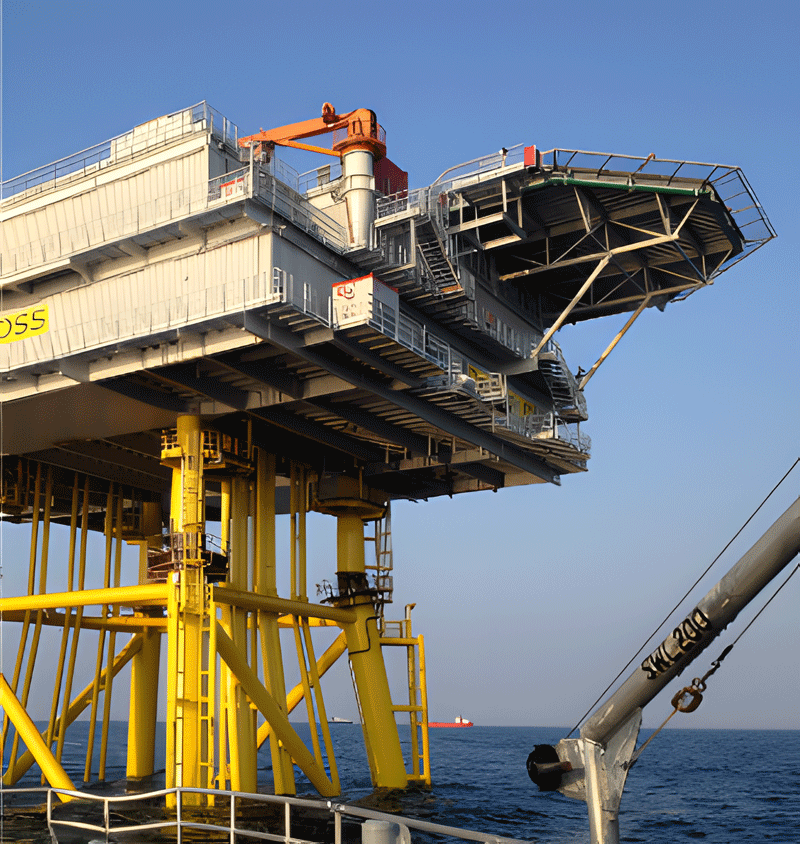

Offshore Platforms	Equipment transfer, maintenance, supply on fixed platforms, jack-ups, tension leg platforms	CBO series (50-100T)

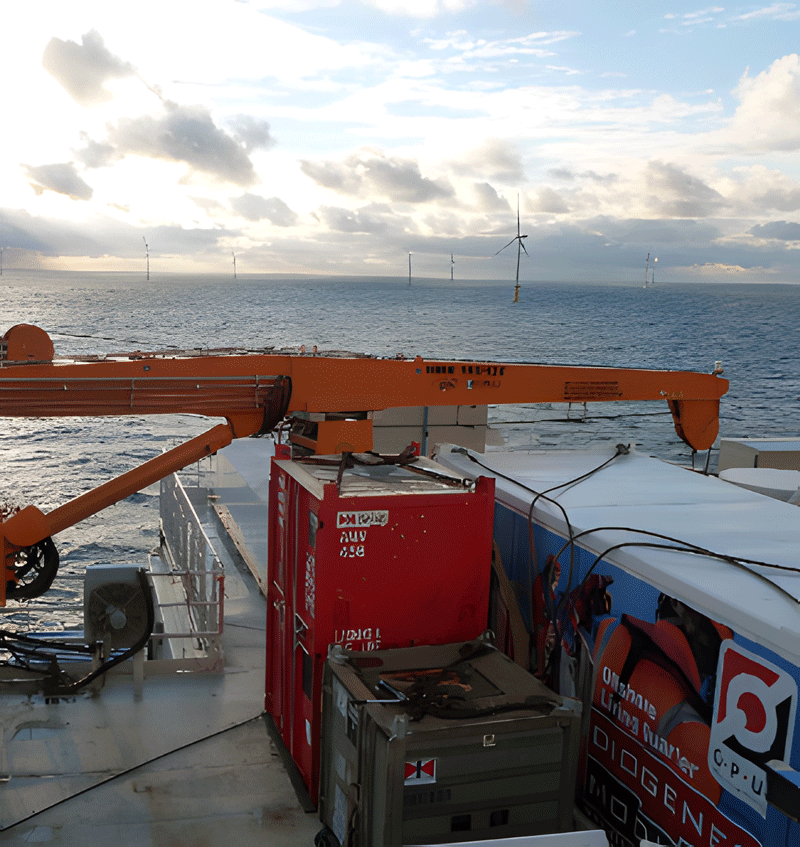

Offshore Wind	Turbine maintenance, substation lifting	PF series (1-3T)
Ports / Terminals	Quayside cargo handling, bulk material transfer	Pedestal-mounted fixed boom
Shipbuilding	Heavy component positioning, block assembly	High-capacity models
Industrial / Fixed-site	Repetitive lifting in plants, factories, shipyards	Custom configurations

7. Key Technologies & Options

Technology / Option	Function
AOPS / MOPS	Anti-two block and overload protection systems
RCL controller	Real-time load monitoring (EN13852-3 compliant)
Constant Tension (CT)	Maintains rope tension for offshore operations
Active Heave Compensation (AHC)	Compensates vessel motion (offshore)
Corrosion protection	ISO 12944 CX / NORSOK M-501 / Thermal spray metallized
Remote control	Wireless operation from safe distance
Anti-collision system	Prevents interference with other equipment
Data logging	Periodic recording of operational data
Remote troubleshooting	Off-site diagnostic support
Grab attachment	Bulk cargo handling
Personnel basket	Man-riding certified (optional)
Winterization package	Extreme cold operation
ATEX certification	Explosion-proof for hazardous areas

8. Design & Construction Features

Component	Specification
Boom structure	Box-type high-strength alloy steel, integral/sectional welding
Steel grade	A36 & S690 certified
Slewing system	Rack and pinion or slew bearing
Drive system	Electric motor + hydraulic pump + hydraulic motor
Control system	PLC with frequency converter, step-less speed control
Electrical protection	IP56 rating
Maintenance	Easy access points, clearly labeled valves
Design life	25 years

9. Buying Guide

Factor	Consideration
Required SWL	Max weight at max working radius (refer to load chart)
Max working radius	Required horizontal reach (meters)
Mounting type	Pedestal (welded/bolted) or deck-mounted
Operating environment	Marine (corrosion), offshore (AHC), hazardous (ATEX)
Power supply	Voltage, frequency, phase (e.g., 440V 60Hz 3P)
Certification required	ABS, BV, CCS, DNV, LR, etc.
Ambient temperature	Standard -10°C to +45°C; extreme options available
Heel/Trim conditions	For marine: ≤5° heel, ≤2° trim typical
Special attachments	Grab, personnel basket, magnet
Personnel lifting	Need man-riding certification?

Key Questions to Specify

Main use scenario (vessel cargo / offshore platform / port / industrial)
Maximum lifting weight (tons)
Maximum working radius (meters)
Classification society (ABS, BV, CCS, DNV, LR, etc.)
Power supply details (voltage, frequency, phase)
Environmental conditions (temperature, salt spray, wind speed)

10. Delivery & Service

Item	Details
Lead time	30–90 days (custom configurations longer)
Minimum Order	1 unit
Shipping	Bulk vessel / Flat rack / Container
Warranty	12-24 months
Payment terms	T/T, L/C at sight
Certification	ABS, BV, CCS, DNV, LR, KR, NK, RINA, RMRS (buyer's choice)

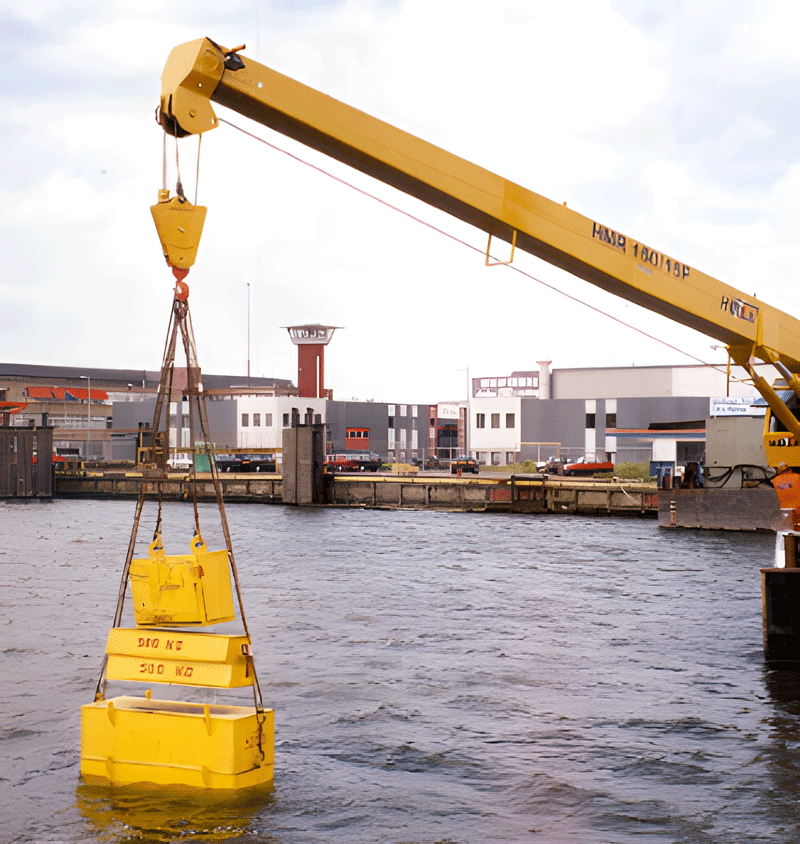

Inspection	3rd party load test certificate available
Installation	Engineer available for on-site installation guide
Service network	Global service support (PALFINGER: 300+ engineers)
Support	24/7 online technical support


