Crawler Cranes

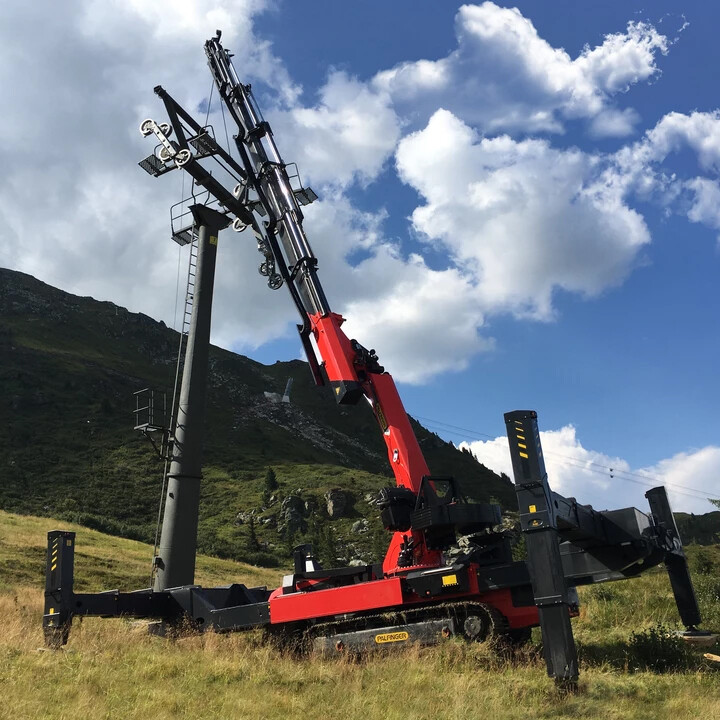

The PALFINGER crawler crane is an all-rounder for a variety of different areas of operation. The special feature of this crane is on one hand its exceptional cross-country mobility – the crawler chassis, its powerful drive and its extra ground clearance allows the use on difficult terrain.

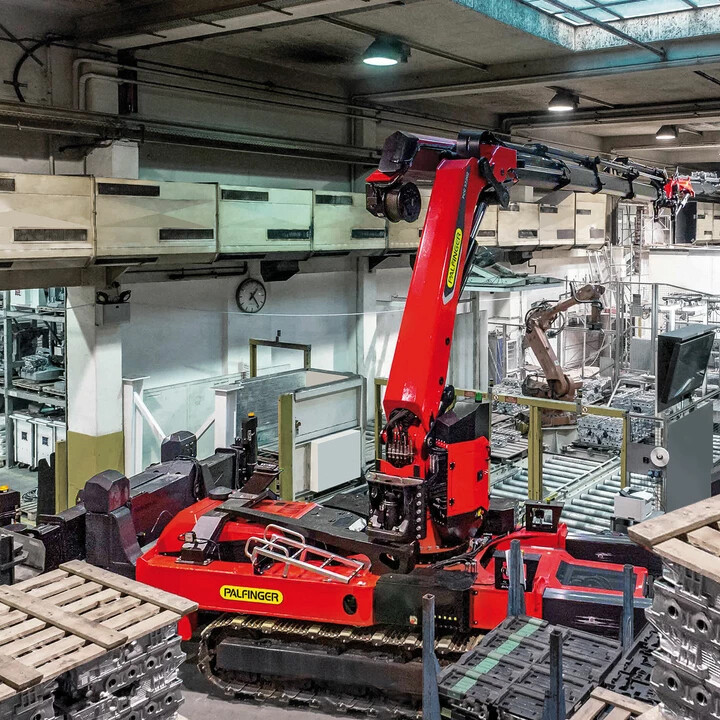

On the other hand, this crawler crane stands out with its compact dimensions and its areas of operation under limited space conditions. This facilitates working in urban spaces or in industrial environment like for example in production halls.



What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.



What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.



How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us

Consult Now

1. Overview

A crawler crane is a heavy-duty lifting machine mounted on tracked undercarriage instead of wheels. The tracks provide excellent stability, low ground pressure, and the ability to operate on soft, uneven, or muddy terrain . Crawler cranes can lift heavy loads and travel with load (pick-and-carry), making them essential for large-scale construction, bridge building, wind turbine installation, and industrial projects .

The world‘s largest crawler crane is the SANY SCC98000TM with 4,500 tons capacity .

2. Key Features

Feature	Description
Tracked undercarriage	Excellent stability, low ground pressure, works on soft/uneven ground
360° continuous slewing	Full rotation for flexible positioning
Pick-and-carry capability	Can travel with load (varies by model)
Lattice or telescopic boom	Lattice for max height/reach; telescopic for faster setup
Modular transport	Disassembles into components for road transport
High lifting capacity	From 50 tons to over 4,500 tons
All-terrain mobility	Climbs slopes up to 60% on some models

3. Boom Types

Boom Type	Description	Best For
Lattice boom	Bolted steel truss structure; lightweight for long reach	Maximum height/reach; heavy lifts (150-1,200+ tons)
Telescopic boom	Hydraulic extension; no assembly required	Faster setup; urban jobs; frequent relocation
Luffing jib	Auxiliary boom with angle adjustment	High-rise construction; confined sites

4. Specifications (Representative Models)

Large Capacity – Tadano CC 38.650-1

Parameter	Value
Max capacity	650 tons (750 tons with booster sections)
Max hook height	193 m
Lift at 12m radius	650 tons
Track width	2.0 m (improves ground load distribution)
Emission standard	Latest (ESG compliant)
Best for	Bridge construction, infrastructure, HS2 project

Medium Capacity – SENNEBOGEN 6203 E (Telescopic)

Parameter	Value
Max capacity	200 tons
Max hook height	78 m (with fly jib)
Engine power	194 kW (264 HP)
Transport width	3,000 mm (transports in 7 loads)
Pick-and-carry	100% capacity on inclines up to 4°
Control system	SENCON with touch display, load moment limitation
Best for	Precast concrete, bridge construction, wind turbines

Medium Capacity – Link-Belt LS-238H (Lattice)

Parameter	Value
Max capacity	150 tons (150 US tons)
Main boom length	50–260 ft (10 ft increments)
Fixed jib length	30–80 ft (5°, 15°, 25° offsets)
Max tip height	308 ft (with jib)
Engine	Cummins QSB 6.7, 270 HP
Counterweight	Up to 107,600 lbs
Best for	Confined sites, nursing school/hospital construction

Mini/Specialty – JMG MC50000TE

Parameter	Value
Max capacity	50 ton-meters (50 tm)
Weight	21,600 kg
Power	Battery-electric (8 hours)
Boom	7 sequential extensions, 360° rotation
Inclination	+85° / -45°
Options	Man basket, ATEX, hydraulic winch
Best for	Indoor, emission-sensitive, confined spaces

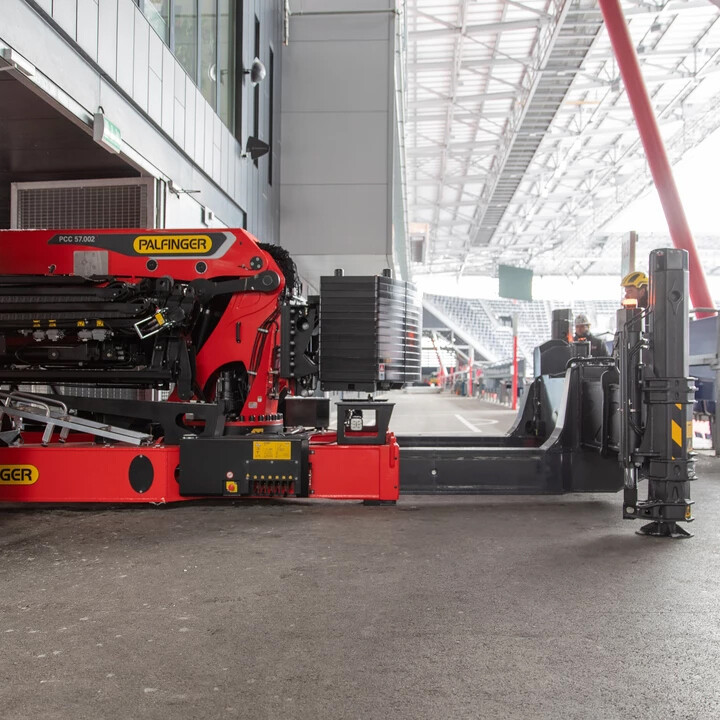

Compact Modular – PALFINGER PCC Series

Parameter	Value
Crane module weight	~25 tons
Crawler module weight	~10 tons
Passage width	1.9–2.1 m
Climbing capability	Up to 60%
Slope compensation	Up to 8° with 100% capacity
Key feature	Separable modules; crane can also mount on truck
Best for	Indoor/outdoor, tight access, multi-purpose

5. Key Technologies & Features

Technology	Function
SENCON control system	Machine diagnostics, load moment limitation, real-time ground pressure display
Elevating cab	Hydraulic lift up to 5.70 m eye level; up to 30° tilt
Modular separation	Crane and crawler separate for transport (PALFINGER PCC)
360° camera system	Full visibility around crane
Pre-set Extend Modes	16 pre-programmed boom configurations (SENNEBOGEN)
3-D Lift Plan technology	Virtual site layout for crane selection
Active oscillation suppression	Dampens boom sway
Pick-and-carry	Travel with load up to 100% capacity

6. Applications

Industry	Typical Use	Recommended Model
Bridge construction	Lifting beams, segments, formwork	150-650 ton lattice or telecrawler
Wind turbine installation	Tower sections, nacelle, blades	200-1,000+ ton with luffing jib
Precast concrete	Panel erection, yard handling	50-150 ton telescopic
Industrial / Plant	Reactor, vessel, heavy equipment	200-650 ton
Port / Terminal	Bulk handling, ship unloading	400-750 ton E-Crane concept
Urban / Confined site	Hospital, school construction	150 ton with luffing jib
Indoor / Emission-sensitive	Factory, warehouse	Battery-electric mini crane (JMG)

7. Transport & Setup

Consideration	Details
Modular disassembly	Counterweights, boom sections, cab, tracks separate
Typical transport loads	SENNEBOGEN 200t: 7 loads ; Link-Belt 150t: main load 87,000 lbs
Self-assembly	Most models can self-assemble using own hydraulics
Setup time	Lattice boom: hours; Telescopic: minutes
No special permits (modular)	PALFINGER PCC separates into road-legal modules

8. Buying Guide

Factor	Consideration
Max lifting capacity	Heaviest load + safety margin (refer to load chart)
Working radius	Required horizontal reach (distance from center pin)
Hook height	Maximum vertical lift required
Boom type	Lattice (max height) vs. Telescopic (fast setup)
Site conditions	Ground firmness, slope, space constraints
Transport logistics	Road legal? Disassembly required?
Pick-and-carry need	Travel with load requirement
Emission compliance	Euro V/VI, electric, or HVO-compatible
New vs. used	New: warranty, latest tech; Used: cost savings

Key Questions

Primary application? (bridge / wind / industrial / general construction)
Maximum load weight? (tons)
Maximum radius at that weight? (meters)
Maximum hook height? (meters)
Typical ground conditions? (firm / soft / uneven / slope)
Transport constraints? (road legal weight/width limits)

9. Delivery & Service

Item	Details
Lead time (new)	3-12 months (varies by manufacturer and configuration)
Lead time (used)	As available
Shipping	Bulk vessel / Flat rack / RORO
Warranty	12-24 months (manufacturer dependent)
Certification	CE, ASME, ABS, BV, DNV, etc.
Service network	Global support (PALFINGER: 300+ engineers)
Support	24/7 online technical guidance


