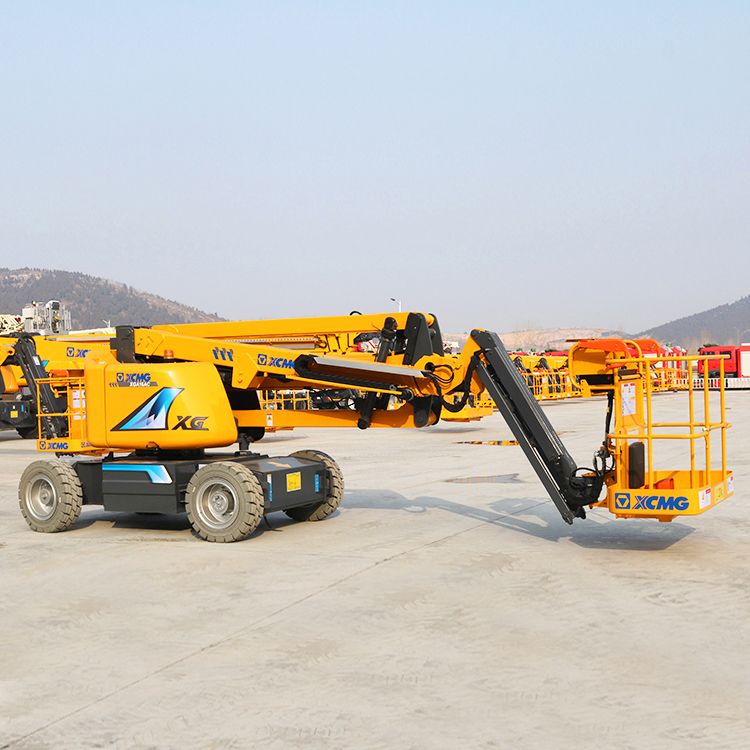

XCMG XGA20ACE Telescopic Boom Lift

The XCMG XGA20ACE is a 20.6m working height all-electric articulating boom lift, powered by a 48V AC drive system for quiet, zero-emission operation and extended shift times . It features a compact 2.38m transport height and tight turning radius, offering up to 11.98m of horizontal reach with a maximum capacity of 350kg . Designed for both indoor and outdoor use, it includes proportional controls for smooth operation, a continuous 360° turntable rotation, and a 45% gradeability for navigating varied terrain



What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.



What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.



How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us

Consult Now

1. Overview

The XCMG XGA20ACE is a 20.6m electric telescopic boom lift (straight boom) designed for construction, plant maintenance, warehouse operations, airports, municipal engineering, and facility repair work. With compact dimensions, wide working range, and strong obstacle-clearing capability, this model offers simple, safe, and reliable operation for a variety of high-altitude applications.

2. Key Features

20.6m working height – Maximum platform height of 18.6m for versatile job site access
Dual load capacity – 256kg / 350kg options to accommodate different operational needs
AC electric drive – Provides longer working hours with zero emissions; suitable for indoor and outdoor use
Multi-function controls – Proportional drive, lift, and lowering for smooth, precise operation
Compact transport dimensions – Overall height of only 2.38m for easy transport and storage
45% gradeability – Strong climbing ability with 4WD for rough terrain conditions
360° continuous turntable rotation – Full platform rotation (160°) for flexible positioning
Various accessories available – Airline, AC power, lithium battery option, non-marking/foam tires

3. Specifications

Parameter	Unit	Value
Working Parameters
Max. working height	m	20.6
Max. platform height	m	18.6
Max. horizontal outreach	m	11.98
Max. load capacity	kg	256 / 350
Max. tail swing	mm	560–565
Boom Luffing Range
1st boom luffing range	°	0 ~ +72
2nd boom luffing range	°	0 ~ +73
Fly jib luffing range	°	-64 ~ +70
Rotation
Turntable rotation angle	°	360 continuous
Platform rotation angle	°	160
Travel & Mobility
Max. travel speed	km/h	4.8
Min. turning radius	m	3.4–5.0
Min. ground clearance	mm	300
Max. gradeability	%	45
Dimensions
Overall length	mm	8,490
Overall width	mm	2,490
Overall height	mm	2,380
Wheelbase	mm	2,500
Platform size (L×W×H)	mm	1,800 × 760 × 1,150
Electrical System
Battery specification	V/Ah	48V / 420Ah (DC)
Main motor	kW/V	12kW / 32V (AC)
Drive motor	kW/V	3.3kW / 32V (AC)
Weight
Total weight	kg	9,100
Tires
Tire specification	–	830×285 (or 835×295, 33×12-20)

Sources:

4. Applications

Industry	Typical Work
Construction	Steel structure installation, facade work, high-altitude fixing
Plant & Warehouse	Equipment maintenance, high-bay rack access, lighting replacement
Airport	Terminal maintenance, signage installation, hangar access
Municipal Engineering	Street lighting, bridge inspection, utility work
Venues & Events	Stage rigging, arena maintenance, sound/lighting setup

5. Features & Benefits

Feature	Benefit
AC electric drive	Longer working hours, zero emissions, quiet operation
Proportional controls	Smooth drive, lift, and lowering for precise positioning
Compact dimensions	Easy transport (2.38m height), fits through standard doorways
45% gradeability	Strong climbing ability for rough terrain job sites
Dual load capacity	256kg/350kg options for flexibility
360° turntable rotation	Unlimited positioning without repositioning the machine
Available accessories	Airline to platform, AC power outlet, lithium battery upgrade, non-marking/foam tires

6. Configuration Options

Option	Description
Lithium battery	Extended runtime and faster charging vs. standard lead-acid
Non-marking tires	For indoor use on sensitive floors (e.g., polished concrete, epoxy)
Foam-filled tires	Puncture-proof for rough terrain job sites
Airline to platform	Provides compressed air at platform for pneumatic tools
AC power to platform	110V/220V outlet for electric tools
Platform extension	Additional workspace for larger jobs

7. Buying Guide

Selection considerations for the XGA20ACE:

Requirement	Recommendation
Working height up to 20m	XGA20ACE is ideal for 4–6 story building access
Indoor operation	AC electric drive – zero emissions, quiet operation
Outdoor / rough terrain	45% gradeability + optional foam tires
Heavy tooling requirements	Choose 350kg load capacity + AC power to platform
Tight job site access	2.38m transport height fits through standard doorways

Key purchasing considerations:

Load capacity – Select 256kg or 350kg based on worker + tool weight
Tire type – Non-marking for indoor sensitive floors; foam-filled for puncture-prone sites
Battery type – Lithium battery upgrade for longer runtime and faster charging
Local regulations – Confirm CE or other certification requirements for your market

8. Delivery & Service

Item	Details
Lead time	1–90 days (depending on stock and configuration)
Warranty	Subject to XCMG official policy
Certification	CE marked; ISO 9001
After-sales service	Engineers available for overseas machinery service
Shipping	Container (2 units per standard container possible) / RORO / Flat rack


