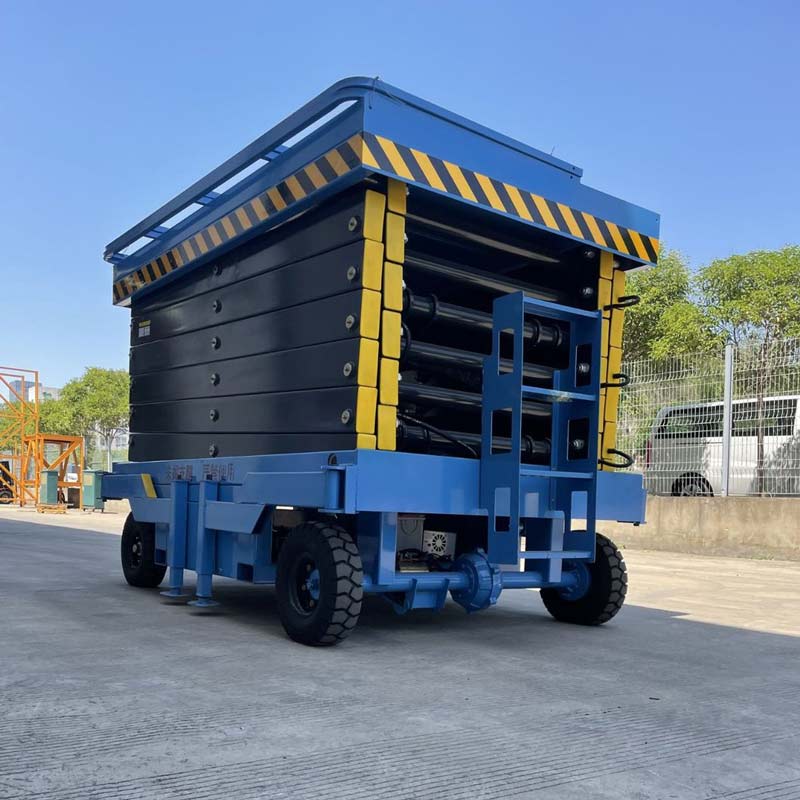

Scissor Lift – SJY Series

The SJY Series is a range of hydraulic scissor lifts designed for mobile aerial work and material handling applications. These lifts are available in various models with platform heights ranging from 4 to 18 meters and load capacities typically from 300 kg up to 2,000 kg . Key safety features include anti-skid platforms, emergency stop buttons, hydraulic burst protection valves, and stabilizing outriggers . The series is widely used for equipment installation, maintenance, warehouse operations, and construction tasks across hotels, factories, stations, and airports



What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.



What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.



How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us

Consult Now

1. Overview

The SJY Series scissor lift is a mobile hydraulic vertical lifting platform featuring a scissor-type folding arm structure. It offers smooth lifting, high load capacity, and simple operation. Designed with advanced hydraulic technology and years of manufacturing experience, this lift is widely used in factories, warehouses, stations, airports, construction sites, and other locations for high-altitude work, equipment installation, cargo handling, and production line applications.

2. Key Features

Scissor-type structure – Made of high-strength seamless rectangular tubes for excellent strength and stability
Multiple safety protections – One-way speed control valve prevents rapid descent even if hydraulic hose bursts; overflow valve prevents overload
Low-voltage control – Platform panel uses 24V low-voltage control for safe operation
Portable design – Four-wheel manual movement for easy relocation between job sites
Large platform area – Spacious deck accommodates multiple workers; includes safety guardrails
Remote control option – Optional remote switch allows operation from ground or platform
Manual pump option – Optional manual hydraulic pump for emergency use when power is unavailable

3. Specifications (SJY Series Complete Models)

3.1 Standard Type (300kg / 500kg Capacity)

Model	Capacity (kg)	Max Platform Height (mm)	Max Working Height (mm)	Platform Size (mm)	Motor Power (kw)	Weight (kg)
SJY0.3-3	300	3,000	~5,000	1300×850	0.55	400
SJY0.3-6	300	6,000	~8,000	1780×880	0.75	750
SJY0.3-8	300	8,000	~10,000	2000×1000	1.5	1,200
SJY0.3-9	300	9,000	~11,000	1800×1000	1.1	1,200
SJY0.3-10	300	10,000	~12,000	2200×1250	2.2	1,500
SJY0.3-11	300	11,000	~13,000	2100×1150	1.5	1,320
SJY0.3-12	300	12,000	~14,000	2600×1250	2.2	1,700
SJY0.3-14	300	14,000	~16,000	2600×1250	2.2	2,200
SJY0.3-16	300	16,000	~18,000	2500×1500	3.0	2,600
SJY0.5-6	500	6,000	~8,000	1600×900	1.5	750
SJY0.5-7.5	500	7,500	~9,500	1800×1000	1.1	1,150
SJY0.5-8	500	8,000	~10,000	2000×1000	2.2	1,400
SJY0.5-9	500	9,000	~11,000	2000×1000	2.2	1,260
SJY0.5-10	500	10,000	~12,000	2200×1250	2.2	1,360
SJY0.5-11	500	11,000	~13,000	2100×1150	1.5	1,380
SJY0.5-12	500	12,000	~14,000	2600×1250	3.0	1,850

*Note: Working height = platform height + average person's height (~2m)*

3.2 Heavy Duty Type (1000kg / 1500kg / 2000kg)

Model	Capacity (kg)	Max Platform Height (mm)	Platform Size (mm)	Motor Power (kw)	Weight (kg)
SJY1-6	1,000	6,000	1800×1100	1.5	1,200
SJY1-9	1,000	9,000	2100×1150	2.2	1,850
SJY1-12	1,000	12,000	2450×1350	2.2	2,500
SJY1-14	1,000	14,000	2500×1400	3.0	2,600
SJY1.5-9	1,500	9,000	2600×1500	3.0	2,200
SJY2-8	2,000	8,000	2600×1500	3.0	2,500

4. Product Structure

The SJY Series scissor lift consists of four main components:

Component	Description
Mechanical structure	Base made of high-strength steel plate; arm made of seamless rectangular tubes; platform with guardrails and low-voltage control panel
Hydraulic system	Pump drives cylinder piston to lift scissor arms; oil returns to tank through solenoid valve under speed control valve during descent
Electrical system	24V low-voltage platform control panel for safe operation
Mobility	Four-wheel design for manual movement; includes extendable stabilizer legs

5. Safety Features

Safety Device	Function
One-way speed control valve	Installed on each cylinder; ensures normal descent speed even if hydraulic hose bursts
Overflow valve (safety valve)	Returns oil to tank when overloaded, preventing damage
Emergency stop button	Located on both platform and ground controls
Stabilizer legs	Must be deployed before operation to ensure level and stable platform
Burst-proof valve	Hydraulic line anti-burst protection
Manual descent function	Allows emergency descent when power fails

6. Applications

Industry	Typical Work
Factory / Workshop	Equipment installation, production line maintenance, lighting replacement, pipe repair
Warehouse / Logistics	High-bay rack access, inventory counting, rack installation
Construction site	Exterior wall work, steel structure installation, curtain wall access
Airport / Station	Terminal maintenance, concourse repair, signage installation
Retail / Exhibition hall	Lighting replacement, HVAC access, ceiling work
Utility / Power	Substation maintenance, overhead line access

7. Operating Instructions

No overloading – Never exceed rated capacity; emergency overload up to 10% max
Must deploy stabilizer legs – Always deploy legs before raising platform; avoid rocking on platform
No live electrical work – Never perform live electrical work from platform
Wind limit – Do not use in wind > Force 5 (28-38 km/h) or during thunderstorms
No moving while elevated – Never move the lift while platform is raised
Lock platform before under-platform maintenance – When working under raised platform, securely support or lock platform to prevent accidental descent

8. Maintenance

Maintenance Item	Requirement
Hydraulic oil check	Check oil level and quality regularly. When fully raised, oil level should be 40-50mm above tank bottom. Replace #120 hydraulic oil if darkened, thickened, or contaminated.
Lubrication	Apply lubricating oil to moving parts regularly to extend bearing life
Nut tightening	Periodically check nuts at scissor arm cross points
Hose inspection	Check for hydraulic oil leakage

9. Delivery & Service

Item	Details
Lead time	10–30 working days (depending on model and order quantity)
Shipping	Land transport / LTL / Container
Warranty	12 months (core components)
Certification	ISO 9001, CE (optional)
Technical support	24/7 online guidance, remote troubleshooting


